>, Inverters, Grid-tie PV inverters>KACO Blueplanet BP 3.0 TL1 M2
Save $310!

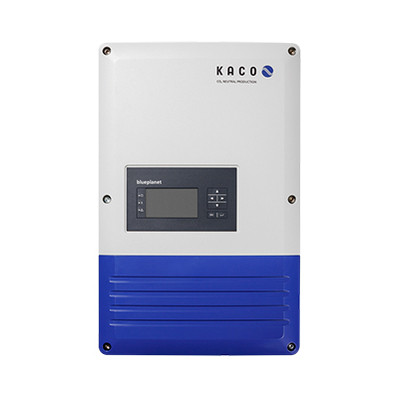

KACO Blueplanet BP 3.0 TL1 M2

$1,710.00 $1,400.00

Inventory Clearout! KACO Blueplanet BP 3.0 TL1 M2 WM OD US39, 3kW, 208/240/277V, PV inverter, Dual-MPPT, AFCI, AC/DC disc.

SKU: KACO-224-102 Categories: , , Tags: ,

Product Description

Small size, light weight, great features, best value!

With a line-up of 1-phase transformerless units, KACO new energy will be inaugurating the new “blueplanet” solar PV inverter series. Newly designed and constructed from scratch, the blueplanet TL1 fulfil the highest requirements for optimum use in residential solar power plants.

This new line offers the convenience of all-in-one features like an integrated AFCI detector, multiple MPPT channels, and an optional integrated revenue grade meter.  It also offers AC and DC overcurrent protection, and DC disconnection means; representing a range of installer time saving features never before seen from a leading global inverter manufacturer. The line of inverters use advanced, lightweight materials and improved power density to decrease your installation time by allowing for simple handling procedures in the field and reducing the amount of additional equipment that must be installed near the inverter. All-in-one communications is now a standard feature from KACO new energy. The TL1 line includes interfaces for 3rd party monitoring as well as support for our legacy of KACO new energy branded monitoring interfaces. The expected CEC efficiency rating of 96.5% and ultra-high accuracy MPPT tracking make this unit the best choice for maximum yield on your projects

Features

  • 2 MPP Trackers on most models
  • Wide MPP range
  • Four inverter sizes, with five option packages each
  • Light weight
  • Tool-less DC/AC conductor termination
  • Multiple communication options standard – no daughter cards required
  • ANSI C1 2.20 revenue grade meter from VEris Technologies

Specifications

Brand

KACO

Mnfr. model

BP 3.0 TL1 M2

Output power

3000 Watt

AC Voltage

208 Volt 3-phase, 240 Volt split-phase

No. of MPPT

2

Max. input Voltage

600 Volt

MPPT Voltage range

140 – 510 Volt

Efficiency

96.5%

AC disconnect

No

DC disconnect

Yes

Arc-fault (AFCI)

Yes

Ground-fault (GFCI)

Yes

Temperature range

-25C through +60C

Enclosure

NEMA 3R

Weight

22 kg

Warranty

10 Years
