Description

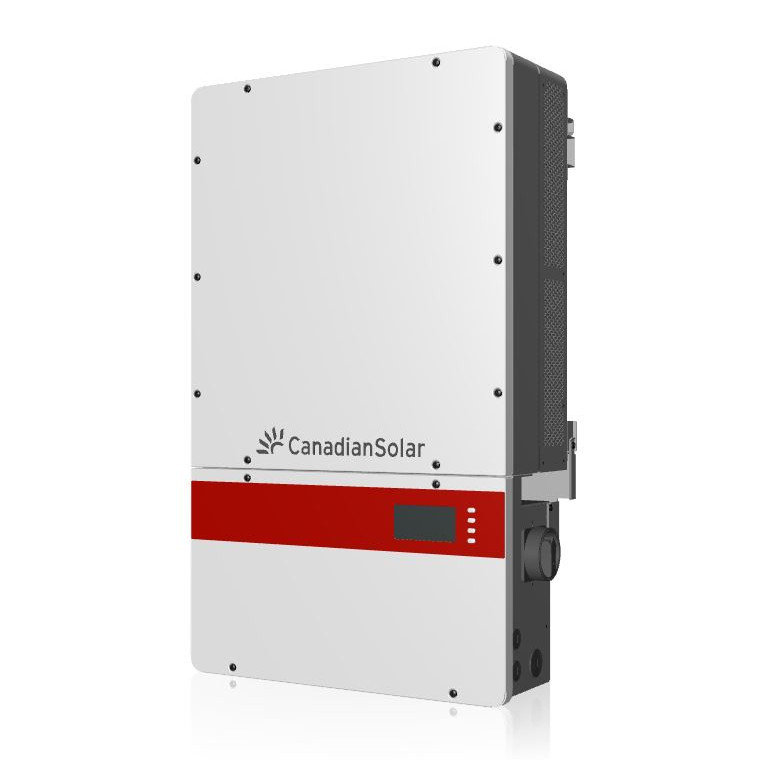

After their success in the PV module arena Canadian Solar now also tackles the inverter market!

What makes these inverters unique is that they can be de-rated to any Wattage (up to their maximum output power), and CSA stickered for exactly that output power. This allows you to hit an exact rated power for a Feed-In-Tariff project.

The three phase grid-tied transformerless string inverter offers dual MPPTs to accommodate two arrays mounted at different azimuth and/or tilt angles, different string lengths – even different size modules. With a 98% CEC conversion efficiency and a wide operating voltage window of 300-900 VDC, it will provide maximum power generation. The use of 1000 V DC will enable Balance-Of-System cost saving.

Canadian Solar Inc. is committed to providing high quality solar products, solar system solutions and services to customers around the world. As a leading manufacturer of solar modules and PV project developer with about 10 GW of premium quality modules deployed around the world since 2001, Canadian Solar Inc. (NASDAQ: CSIQ) is one of the most bankable solar companies
worldwide.

Features

  • Very high maximum CEC efficiency of 98%!
  • 2 MPPTs to achieve higher system efficiency
  • 3-level technology and enhanced control mechanism to achieve high efficiency over wide load range
  • “Electrolyte-free design” for improved long-term reliability
  • Standard 10-years warranty, extension up to 20 years
  • Advanced thermal design with variable speed fans
  • Ground-fault detection and interruption circuit
  • ARC-fault detection function (factory enabled)
  • NEMA 4 (IP65), outdoor application
  • Active power derating, overfrequency derating and reactive power adjustable
  • Separate wiring box design
  • Low voltage ride-through
  • Integrated DC and AC disconnects
  • Wide MPPT range for flexible string sizing
  • 1000 V max. DC input voltage for flexible configuration
  • 15 – 90 degree installation orientation, 90 degrees recommended

Specifications

Brand

Mnfr. model

Output power

AC Voltage

No. of MPPT

Max. input Voltage

MPPT Voltage range

Efficiency

AC disconnect

DC disconnect

Arc-fault (AFCI)

Ground-fault (GFCI)

Temperature range

Enclosure

Weight

Warranty
