Conext Connection Kit


Conext / Schneider XW Connection Kit for wiring second, or third inverter to PDP, 865-1020-02

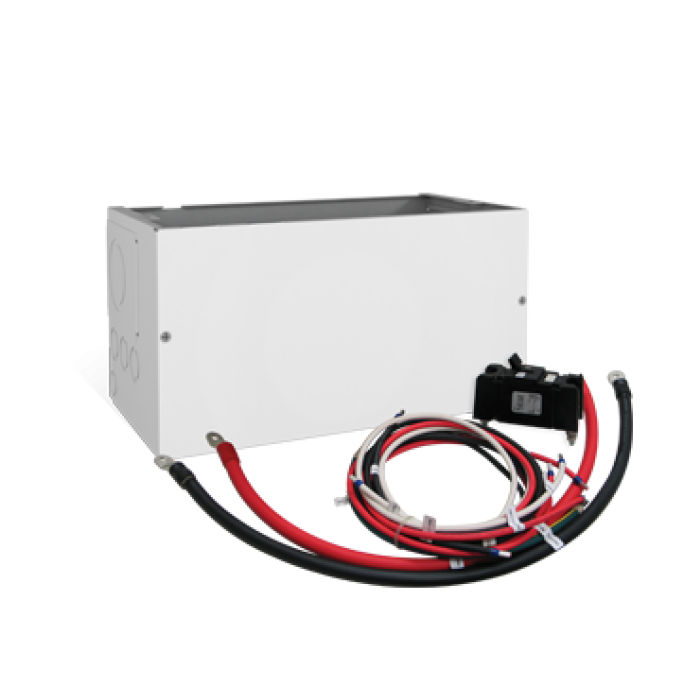

The XW Connection Kit is an extension kit required for connecting a second or third XW Inverter/Charger to the XW Power Distribution Panel (PDP).


  • Conduit Box for attaching to the bottom of second or third Conext XW inverter/charger
  • Bushings for AC wiring knockouts, AC Sync and Xanbus knockouts
  • Two #4 AWG (107 mm²) DC battery cables for connecting to the PDP
  • Five #6 AWG (13.3 mm²) cables for GRID, LOAD and Neutral AC connections
  • DC positive bus bar for up to three DC disconnect breakers
  • One #2 AWG (33.6 mm²) cable for grounding
  • One GJ 250 Amp 160 VDC circuit breaker
  • AC Sync and Xanbus cables for network communication
  • Plastic cable ties



Mnfr. model
