Description

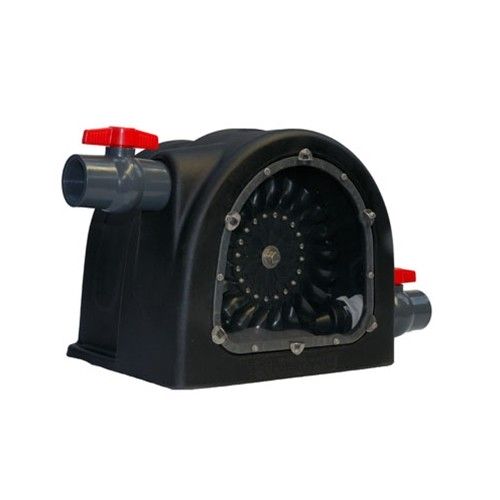

The PowerSpout PLT is a Pelton turbine which on a suitable high-head site can produce up to 1.6 kW 24/7, 365 days a year. If a larger output is required you can stack units to generate over 16 kW on the same pen-stock and power cable.
A small hydro turbine can generate very large amounts of energy because it runs 24 hours a day, 7 days a week, unlike solar or wind that vary greatly in output over time. If you have a suitable hydro resource this can be a great source of energy! The EcoInnovation PowerSpout turbines are proven high-quality solutions that will help you make the best of your site. Various alternators are available with output Voltages that suit charge controllers for battery charging, as well as direct grid-tie with an inverter.

Orders will be accepted only on advice of the saved calculation file number and the model of the MPPT regulator or grid-tied inverter you are connecting to. You must order a HP version if your W/rpm is > 0.7.

For a general idea if your site is hydro-power worthy, check EcoInnovations handy chart showing available power vs. water height and flow rate.

Use the tool here to do calculations for your site and select the correct Smart Drive PMA.

Refer to PowerSpout Document Index Links for a complete index of documents.

Features

  • Static head range: 3 to 160m (10 – 525 feet)
  • Dynamic head range: 3 to 130m (10 – 430 feet)
  • Maximum flow/turbine: 8-10 l/s (130 – 160 gpm)
  • Minimum flow/turbine: 0.05 l/s (0.8 gpm) at maximum head
  • Dimensions: 470 x 400 x 430 mm (18.5 x 15.7 x 17 inches)
  • Maximum power: 1200W (Standard) or 1600W (HP)
  • Common version available PLT 14/28/40/56/80/170/200
  • Maximum current rating 32 amp

Specifications

Brand

Mnfr. model

Head range

Flow range

Output power

Weight

Warranty
