DISCONTINUED: Fronius Galvo 2.0-1 2kW Lite PV 208-240V, with AFCI, 4,200,012,801

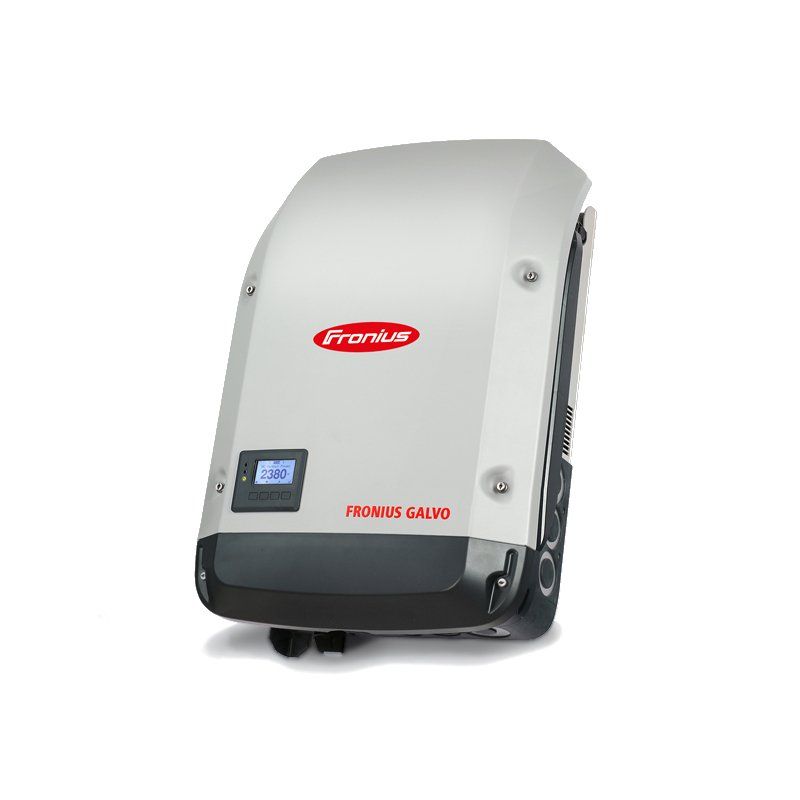

Fronius Galvo 2.0-1 Lite
Call for price
Out of stock
Out of stock
The Fronius Galvo – Power generation that lasts. Several features come standard including Wifi capability (for the Advanced models), Arc Fault Circuit Interruption, and the lightest weight design in its class. The Fronius Galvo not only offers convenience for a system owner but for the installer with the SnapINverter hinge mounting system, field serviceability and security locking capability. The Fronius Galvo provides low voltage start up, a super wide voltage window, and power classes from 1.5 kW to 3.1 kW, allowing for incredible flexibility in string design and the perfect fit for any solar system. The Fronius Galvo is now CEC 2015 compliant with the convenient and easy addition of the Fronius Rapid Shutdown Box.
The Fronius Arc Fault Circuit Interruption (AFCI) is the best of its kind in the industry. The technology makes each inverter CEC compliant. Ensuring the utmost safety, AFCI shuts down the inverter in the event of an arc fault. The SnapINverter Hinge Mounting System in the design of our devices is that the connection compartment is separate from the power stage set compartment. They are installed separately. The connection area and all its cabling is fitted to the wall first. The power stage set compartment is fitted afterwards. The innovative SnapINverter mounting system makes installation and servicing extremely user-friendly. The inverter is simply placed in the wall bracket and then secured. It is not necessary to remove the entire inverter for servicing, just the power stage set compartment. All the cabling, settings and configurations remain in place. Simple, user-friendly system monitoring is very important to Fronius. With the Fronius Datamanager and Datamanager 2.0, we are the first inverter manufacturer to offer a Wifi interface in the inverter itself. The inverter is connected to the internet without additional cabling and grants you the perfect overview of how the PV system is operating.
Fronius inverters are ready for the Smart Grid of tomorrow. The inverters are optimally equipped to meet the technical requirements of grids in the future. A series of smart functions, known as Advanced Grid Features, are built into the devices. These include a number of control functions for optimum feed-in of reactive power and effective power. These functions are designed to enable stable grid operation even when the PV system density is very high and to prevent unwanted interruptions to feed-in and associated yield losses. Fronius inverters therefore help to guarantee the yield of a PV system. Fronius transformer inverters use a high-frequency (HF) transformer. The automatic transformer switchover facility produces three efficiency peaks. The result: a constant level of efficiency across the entire input voltage range, resulting in higher yields. Other advantages of HF transformer technology are the compact, lightweight design and safety as a result of the electrical isolation.
The “Advanced” Galvo inverters have a datalogging card build-in and can do Web monitoring via Wifi or wired Internet connections. The “Lite” Galvo inverters do not have the datalogger card and do not have Web monitoring.
- Suitable for all module types due to galvanic isolation
- Low start-up Voltage and wide Voltage range
- Very quick and easy installation due to Fronius’ unique SnapINverter design
- Integrated DC disconnect
- Very wide operating temperature from -40C through +50C
- Sealed NEMA 4X housing for indoor and outdoor mounting
- Can be mounted completely horizontal, for example for flat roof mounts
- Our manufacturer info page
- Manufacturer Web site
- Product spec sheet (pdf)
- Installation manual (pdf
- Operating fundamentals document (pdf)
- UL/CSA certificate (pdf)
|No. of MPPT|
|MPPT Voltage range|
