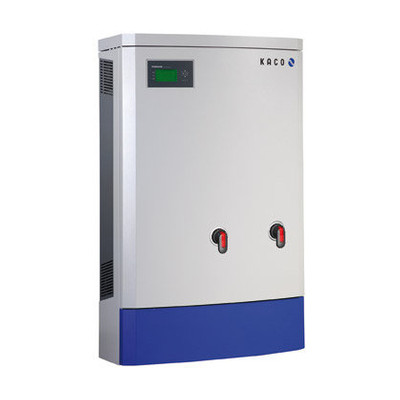

>>>KACO Blueplanet BP 32 TL3 M1

Description

Designed as a global platform, the blueplanet 32.0 TL3 product line is based on the field proven 39.0 TL3 with around 750 MW of installed capacity globally. The blueplanet 32.0 TL3 is designed for UL 1741 listing with 600 VDC operation and 480 VAC grid tie operation. Three power ratings are available: 32, 40 and 50kW with the choice of a single MPP or three MPP model option.

Maximum energy yield, PV system design flexibility, safety, and low maintenance are the goals of the blueplanet 50.0 TL3 product line.  Each power rating is available with integrated visible, lockable AC and DC disconnection means, nearly 98% CEC efficiency rating, and sealed electronics.  Operations and performance monitoring is achieved with a standard integrated webserver, on board data logging functions, a graphical user interface, and Modbus read and control functions for 3rd party monitoring.

Monitoring

EasyLINK data interface: Ethernet, Modbus (TCP IP), USB, RS485, S0, N/O contact.

Graphical User Interface (GUI)

User friendly display and 6 button keypad streamlines inverter commissioning and provides access to inverter data with clear graphical images.

Free real-time monitoring

Built-in webserver in each individual bp 32.0/40.0/50.0 TL3 provides easy access to performance statistics and PV system data.

Features

  • Transformerless Inverter Technology
  • 97.5% CEC efficiency
  • Shade tolerant with one (M1) or three (M3) MPPT options
  • 200 to 600 VDC operating range
  • 480 VAC 3-phase nominal
  • Graphical display
  • NEMA 3R

Specifications

Brand

Mnfr. model

Output power

AC Voltage

No. of MPPT

Max. input Voltage

MPPT Voltage range

Efficiency

AC disconnect

DC disconnect

Arc-fault (AFCI)

Ground-fault (GFCI)

Temperature range

Enclosure

Weight

Warranty
