DISCONTINUED: KACO Blueplanet BP 50 TL3 M3 WM OD, 50kW, 1000V DC – 480V AC, 3 MPPT, AC/DC disc.

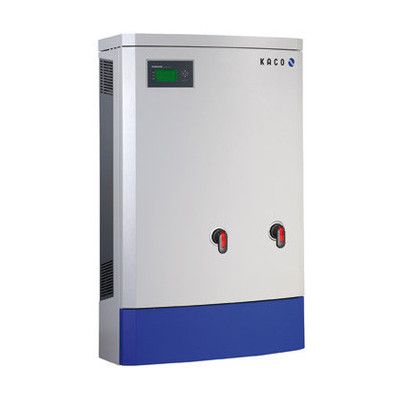

KACO Blueplanet BP 50 TL3 M3
Call for price
Out of stock
Out of stock
Designed as a global platform, the blueplanet 32.0 TL3 product line is based on the field proven 39.0 TL3 with around 750 MW of installed capacity globally. The blueplanet 32.0 TL3 is designed for UL 1741 listing with 600 VDC operation and 480 VAC grid tie operation. Three power ratings are available: 32, 40 and 50kW with the choice of a single MPP or three MPP model option.
Maximum energy yield, PV system design flexibility, safety, and low maintenance are the goals of the blueplanet 50.0 TL3 product line. Each power rating is available with integrated visible, lockable AC and DC disconnection means, nearly 98% CEC efficiency rating, and sealed electronics. Operations and performance monitoring is achieved with a standard integrated webserver, on board data logging functions, a graphical user interface, and Modbus read and control functions for 3rd party monitoring.
EasyLINK data interface: Ethernet, Modbus (TCP IP), USB, RS485, S0, N/O contact.
Graphical User Interface (GUI)
User friendly display and 6 button keypad streamlines inverter commissioning and provides access to inverter data with clear graphical images.
Free real-time monitoring
Built-in webserver in each individual bp 32.0/40.0/50.0 TL3 provides easy access to performance statistics and PV system data.
- Transformerless Inverter Technology
- 97.5% CEC efficiency
- Shade tolerant with one (M1) or three (M3) MPPT options
- 200 to 600 VDC operating range
- 480 VAC 3-phase nominal
- Graphical display
- NEMA 3R
|No. of MPPT|
|MPPT Voltage range|
