MidNite Solar MNEPV16-600RT

The DC-rated breakers from MidNite are the go-to choice for solar PV, wind, and battery systems. Anywhere DC breakers are required.

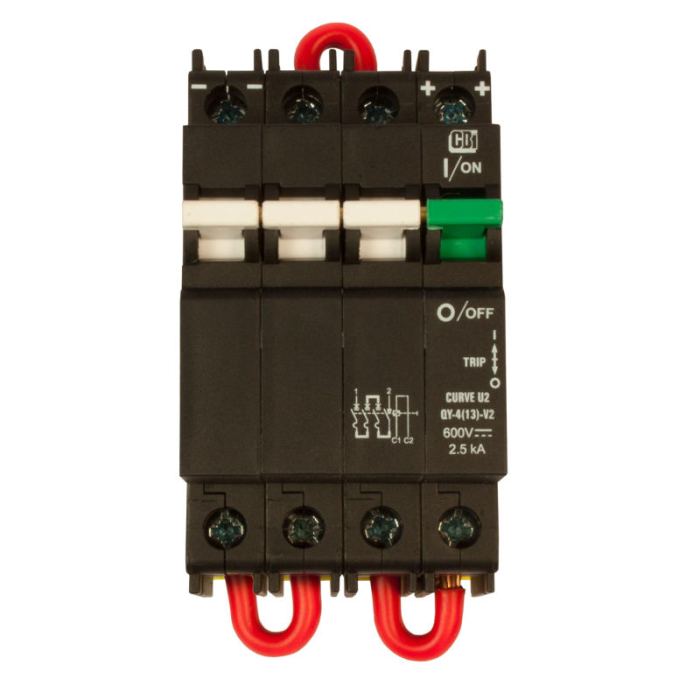

The MidNite MNEPV16-600RT is a 16 A/600 VDC breaker that mounts on a DIN rail. MidNite’s breakers are rated to break the full rated load at the rated voltage repeatedly, with NO DAMAGE. Always use a properly sized breaker for disconnecting.

These breakers are great for combiner boxes for grid-tie inverters that use 600 Volt strings. This breaker has remote-trip ability, though it can also be used as a regular 600V 16A breaker.

Features

• Current Rating – 16A
• Width 2 inches (52 mm)
• Has remote-trip capability
• DC Voltage Rating – 600VDC
• Wire Size Range – 14 to 6 AWG
• Environmental Rating – Type 1 (Indoor)
• Breaker Torque Value: 20 In-Lbs (2.3NM)
• Listed for US & Canada when used in MidNite Solar enclosures
• Warranty – 5 years
