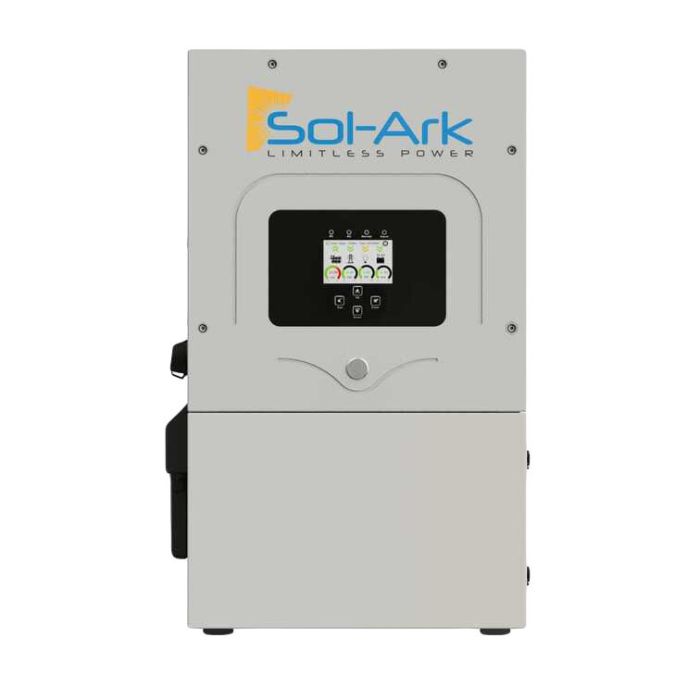

Sol-Ark 5K-2P-N

Call for price

Out of stock

DISCONTINUED: Sol-Ark 5K-2P-N, 5kW pure-sine inverter, 48V DC in, 240 VAC split-phase out, 5kW dual-MPPT PV charger, 120A AC charger, CSA-listed, 5 year warranty

Out of stock

SKU: SAK-224-100 Category: Tags: , ,

The Sol-Ark 5K-2P-N is a 5kW All-In-One inverter that can be used in either an off-grid setting, or tied to the grid to provide back-up power, peak-shaving, or load-shedding. The Sol-Ark inverter spans the bridge between battery-less grid-tie inverters, and off-grid systems that can provide power when the grid goes down. The inverter can export excess solar PV to the grid, to make an effective net-metering system

6,500 Watt of Solar PV can be connected to charge the batteries, and/or export to the grid. The Sol-Ark inverter has two independent MPPT inputs, each allowing a wide Voltage range of 125 – 500 Volt (150 – 425 Volt MPPT range). The high-Voltage inputs allow for long PV strings, making it simpler to install solar PV.

The unit has a build-in transfer switch that allows for switching from grid-tie to off-grid mode in 4ms, making the ideal Uninterruptable Power Supply (UPS). This is fast enough to prevent computers from noticing or resetting.

It meets all the grid-tie regulations and requirements for a code-compliant installation: UL/CSA-listing for the USA and Canada, the solar PV input includes AFCI and GFCI, minimizing the need for additional equipment. Please note that the 5kW Sol-Ark cannot be stacked.

Features

  • 48 Volt battery bank
  • Can be installed outdoors
  • Cell phone app for monitoring
  • Remote monitoring via Internet
  • Build-in 250A DC battery breaker
  • 120 Amp battery charger from AC
  • 105 Amp battery charger from solar PV
  • Up to 500 Volt DC dual-MPPT for solar PV
  • Rapid Shutdown integration using Tigo TS-4F units
  • 63 Amp 240V split-phase (15kW) pass-through capable
  • 5000 Watt continuous AC output, 16kW for 10 seconds
  • Works with lithium-ion, AGM, GEL, and flooded batteries
  • Integrated relay for automatic-generator-start (AGS) functionality
  • UL & CSA-listed
  • 5-year warranty
Find this useful? Share it with your friends!
Find this useful? Share it with your friends!

Specifications

Brand

Mnfr. model

Inverter type

Battery Voltage

Output power

AC Voltage

No. of MPPT

Max. Voltage

MPPT Voltage range

Efficiency

AC disconnect

DC disconnect

Arc-fault (AFCI)

Ground-fault (GFCI)

Temperature range

Enclosure

Weight

Warranty
