C4P VoltRay C4P14CF

Call for price

Out of stock

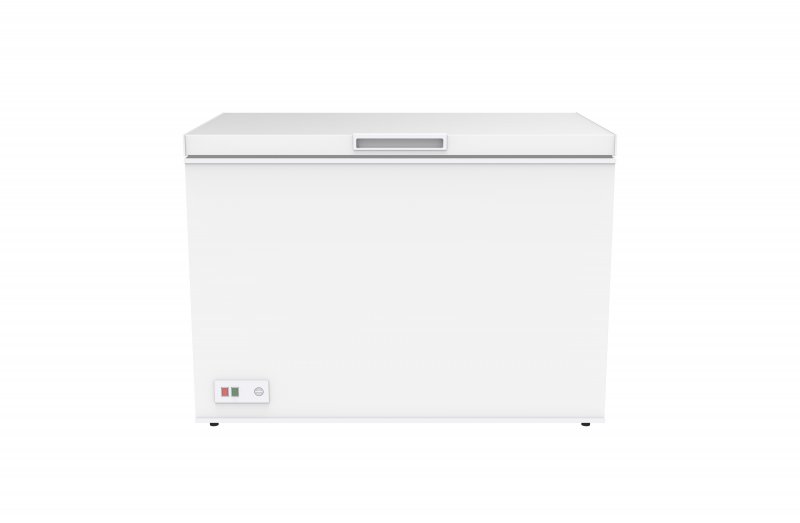

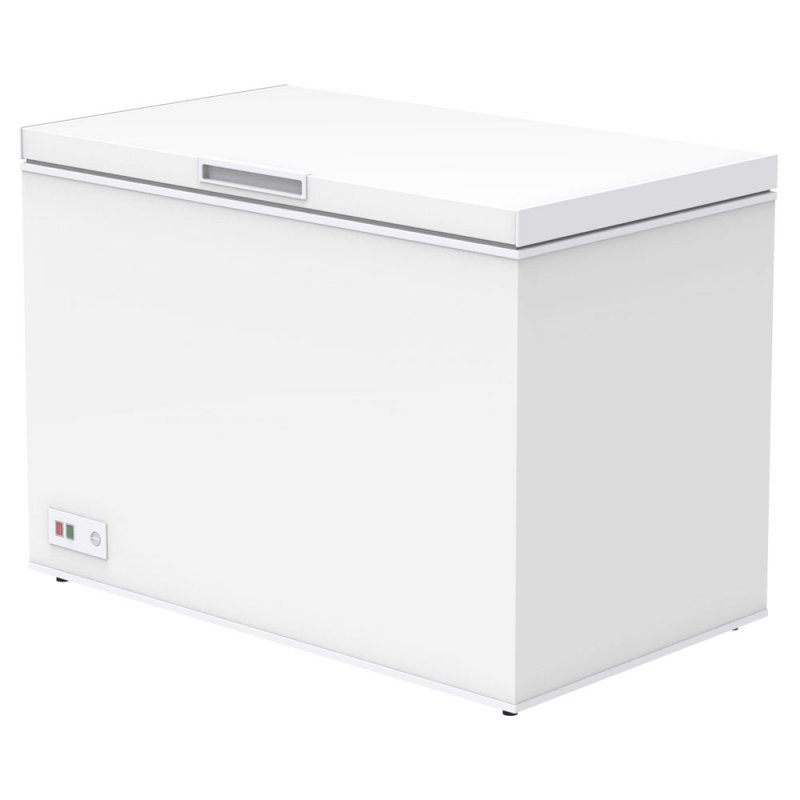

DISCONTINUED: C4P VoltRay C4P14CF, 14 cu. ft. chest fridge/freezer (+10 .. -23C thermostat), 12/24 Volt DC

Out of stock

SKU: C4P-202-104 Category: Tags: , , ,

The C4P VoltRay line of freezers/refrigerators were especially designed to run directly from 12 and 24 Volt DC. The C4P fridges and freezers use an in-house designed high-efficiency DC compressor, built for reliability. All C4P fridges are auto-sensing for 12 or 24 Volt.

The VoltRay C4P14CF can be used as a fridge or a freezer, by changing the thermostat setting. It has an internal volume of 14 cu. ft., and the electronic thermostat can be set from +10 to -23 Centigrade. The very high insulation values make this a super-efficient fridge. At an ambient temperature of 21 Centigrade the energy use is just 306 Wh per day at 0 Centigrade inside. A single 130 – 180 Watt panel is sufficient to provide this amount of energy per average day from spring through fall in our (southern Ontario) climate, for winter it would require twice as much. While running, the unit has a power use of just 95 – 150 Watt. When used as a freezer, at an ambient temperature of 21 Centigrade the energy use is just 522 Wh per day at -18 Centigrade inside.

Low energy consumption is the key that allows C4P refrigerators and freezers to be cost effectively powered from solar, wind, fuel cells or batteries. This technology allows refrigeration in remote locations where it was previously unavailable or prohibitively expensive. The C4P fridges form a superb and cost-effective alternative to propane fridges.

C4P fridges and freezers ship truck-freight directly from the manufacturer in Mississauga, Ontario. Shipping is not yet included in the price.


  • 12/24 Volt automatic detection
  • 14 cu. ft. refrigerator/freezer
  • Thermostat range of +10 through -23 Centigrade
  • 95 – 150 Watt power use
  • 306 Wh/day (0C), 522 Wh/day (-18C) @ 21C ambient
  • R-134a refrigerant
  • 1.5 year warranty
