Hanwha Solar Q.PEAK DUO XL-G10 / BFG 470 Pallet

$11,370.24

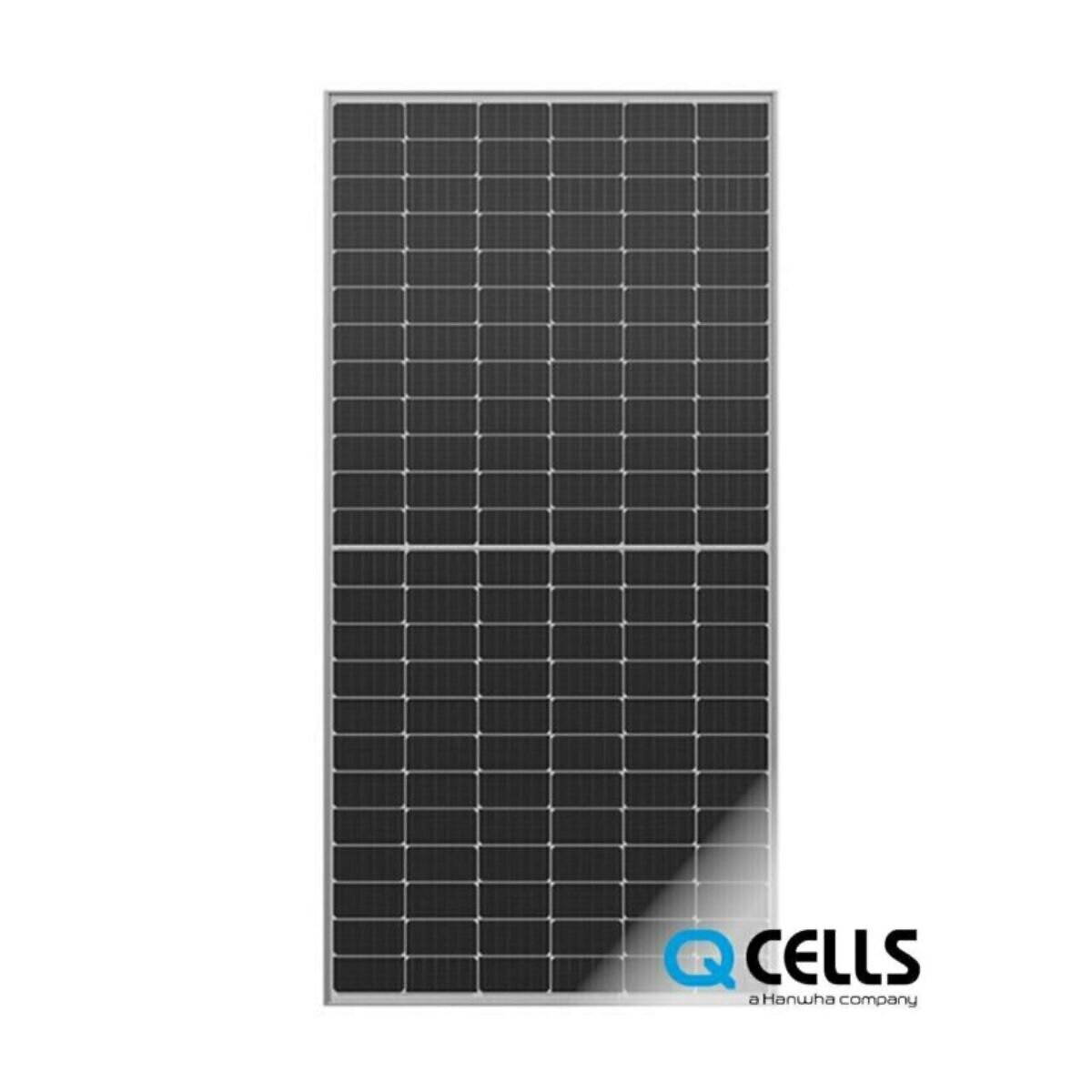

Hanwha Solar Q.PEAK DUO XL-G10.3 / BFG 470 Watt, bifacial, 78-cell (156 split-cell) mono PV module, whole pallet of 30, silver frame, MC4 connectors, cUL

SKU: HAN-303-115-P Categories: , Tags: ,

A high-yield Hanwha 78-cell module (actually 156 split-cells) with 470 Watt rated output. Korean-based Hanwha  is an A-brand solar module producer that delivers very consistent perfectly-made modules that simply perform as advertised, year after year, for a price that is hard to beat. The cells are made by the German Q-Cell company, designed to achieve the best performance under real-word conditions – even with low radiation intensity and on hot summer days.

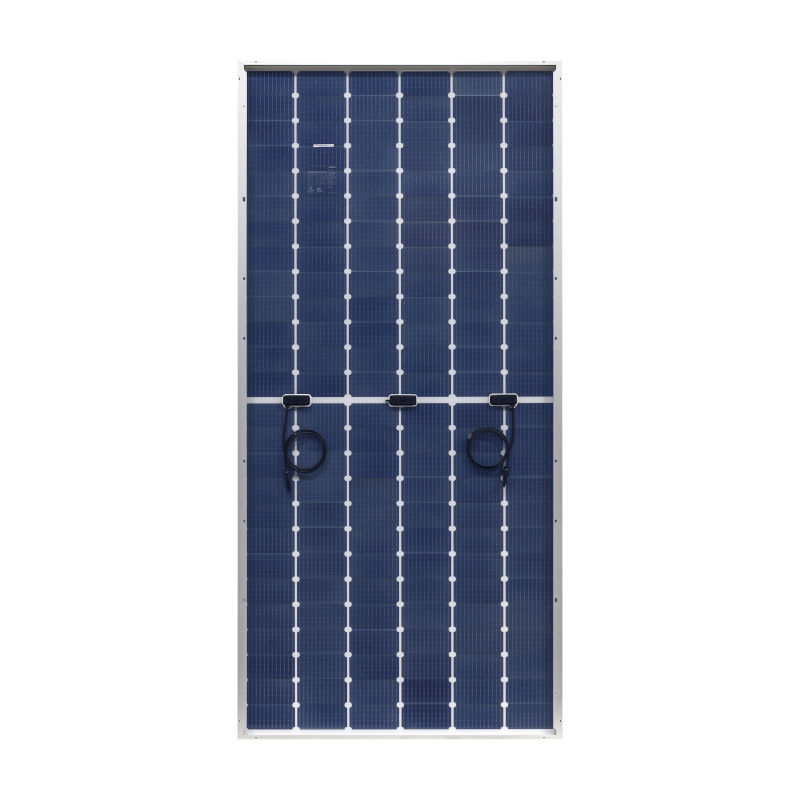

These are bifacial modules, with glass on both the front and back. Bi-facial modules produce power from both their front and back sides. The rated output (470 Watt) is based on the front-side only! Anything added by the back side is a bonus. Under ideal conditions (light reflected off of snow or water) up to an additional 30% in power output is possible.

These are bi-facial modules with a silver frame.

This is for a full pallet of 30 panels. Single panels are available as well.

Pallet & Repacking Fee

Please note that a $55 “Pallet and Repacking Fee” will be added for all partial pallets with solar panels (i.e. anything less than a full skid of panels). We will be happy to refund this fee if you bring the pallet back to us in good shape, so it can be re-used. This fee is needed to cover our cost of having custom oversized pallets made to ship solar panels on (and those pallets cost us well over $60 each!).

Features

  • 35 mm black frame
  • Rated for 1500 Volt strings
  • Bi-facial module, backside yields power too
  • Mono-crystalline Q-cells, 156 split-cell module
  • Double-glass (front and back) for extra durability
  • High-yield panel, with an efficiency rate of up to 21.2%
  • Guaranteed positive power tolerance sorting: -0 … +4.99 Wp
  • Uses Multi-Contact brand name MC4 connectors (meets Ontario’s electrical code)
  • Low temperature coefficients – resulting in higher real-world yield and high CEC rating
  • Excellent low-light and temperature behavior, consistently rated no. 1 by real-world tests in Photon Magazine
  • Anti LID, and anti-PID Technology, Hot-Spot-Protect, and Traceable Quality Tra.Q™ for long-term reliability
  • High-tech aluminum alloy frame, certified for high snow (5400 Pa) and wind loads (2400 Pa) regarding IEC
  • 12-year full product warranty and 25-year linear performance guarantee
  • UL and CSA listed for Canada & USA

Specifications

Brand

Mnfr. model

Output power

No. of cells

,

Colour

Length

Width

Weight

Quantity

Warranty
