>>Heliene 72PHD-325

Description

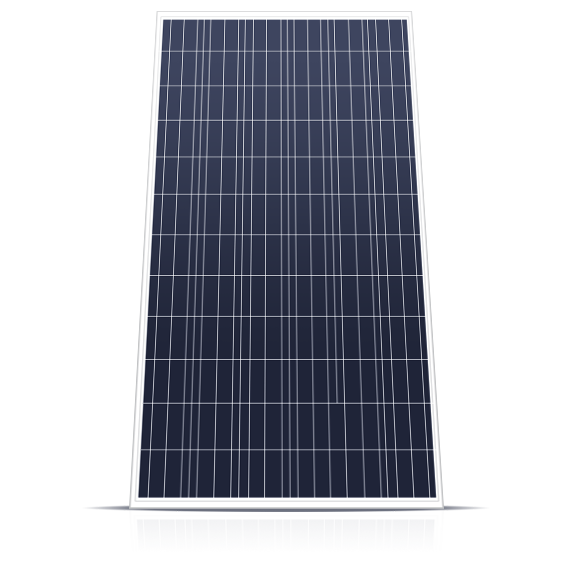

The Heliene 72MHD is a new 72 poly-crystalline cell module that is capable of generating up to 325 Watt of power. With output classes ranging from 315 Wp to 325 Wp, the Heliene 72MHD still retains a thickness of only 40 mm and weighs 21 kg. The Heliene 72PHD is a great choice for economical, high-power panels. Not only for grid-tie projects, due to its 72-cells these panels can also be used off-grid for charging 24 Volt and 48 Volt battery banks using a regular PWM-type charge controller.

This module is also available as ‘Black-on-Black’, with a black anodized frame and black Tedlar backsheet, for an additional 3 cent per Watt.

These PV modules ship from Sault Ste. Marie, Ontario.

Features

  • Guaranteed positive power tolerance sorting: -0 … +4.99 Wp
  • Built with thick prismatic glass, which results in higher efficiency, lower reflectivity, and lower dust adherence
  • They feature minimum power dispersion; standardized 1,500 volts insulation, 72 premium poly-crystalline cells
  • All poly-crystalline 6” cells, measuring 156 x 156 mm, with three collector buses per cell to increase performance
  • Reduced current collecting temperature which reduces aging, leading to a life expectancy of more than 25 years
  • Stronger and thicker micro-prismatic glass surface for greater energy yield under diffuse sunlight & low-light conditions
  • Manufactured in accordance with international quality standard ISO9001
  • Canadian Made!

Specifications

Brand

Mnfr. model

Output power

No. of cells

Cell type

Colour

Length

Width

Quantity

Warranty
