Penn-Union BLYxx-L Copper Lug

$4.64$6.17

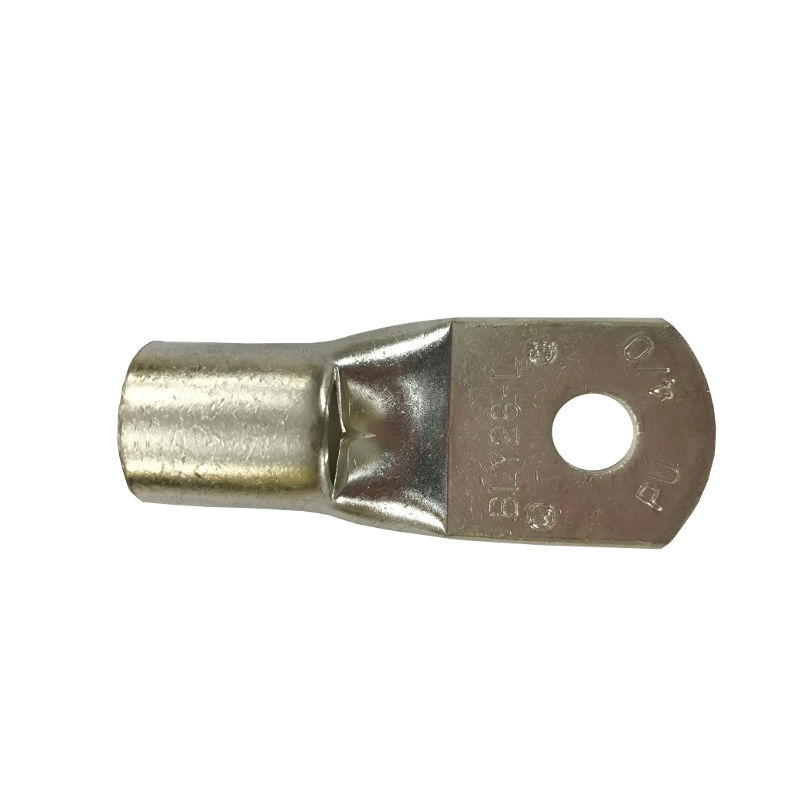

Penn-Union BLYxx-L, tin-plated copper lug, 2 AWG – 4/0 AWG, 3/8″ hole, cUL listed

SKU: XXX-XXX-193 Categories: , Tags: , , , , ,

Heavy-duty tin-plated solid copper lugs for 2 AWG through 4/0 AWG wire from Penn-Union’s BLY series. Stud hole is 3/8″ on all sizes. These lugs are ideal for battery interconnects and inverter cables.

Lug Dimensions

Lug Dimensions

A (inch)L (inch)L2 (inch)W (inch)
BLY2C-L (2 AWG)0.35″ Min.1.72″ Max.1.37″ Max.0.69″
BLY1C-L (1 AWG)0.38″ Min.1.84″ Max.1.45″ Max.0.76″
BLY25-L (1/0 AWG)0.43″ Min.2.01″ Max.1.61″ Max.0.83″
BLY26-L (2/0 AWG)0.48″ Min.2.32″ Max.1.85″ Max.0.93″
BLY28-L (4/0 AWG)0.60″ Min.2.72″ Max.2.16″ Max.1.12″



Features

  • Tin plating ensures maximum conductivity and corrosion resistance
  • Seamless one piece pure electrolytic copper construction
  • Generous entrance chamfer for easy wire insertion
  • Inspection window to insure full wire insertion
  • Can be installed with regular crimp tools, or soldered
  • UL/CSA listed & stamped

Specifications

Brand

Mnfr. model

, , , ,

Gauge

, , , ,
