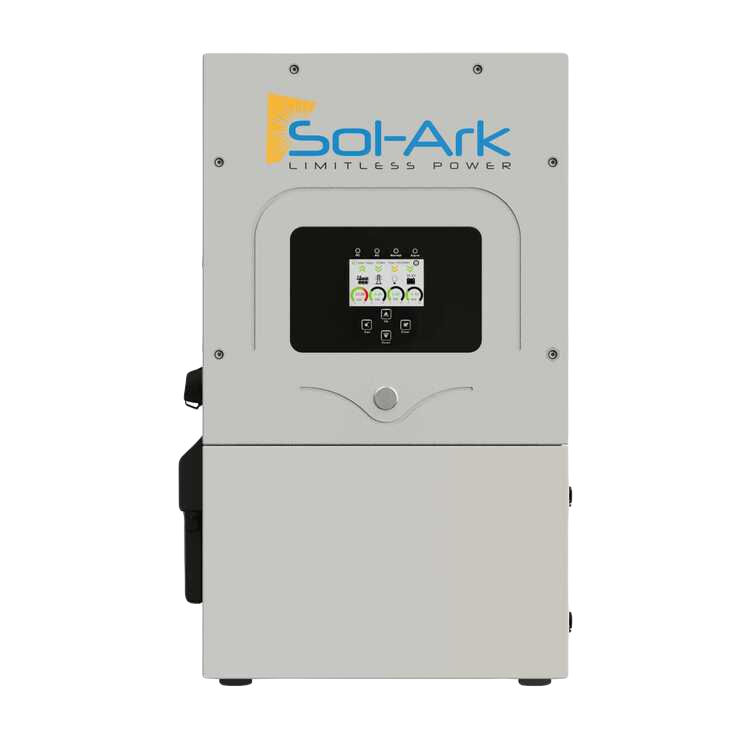

Sol-Ark 15K-2P-N, 12kW pure-sine inverter, 48V DC in, 240 VAC split-phase out, 15kW dual-MPPT PV charger, 275A AC charger, CSA-listed, 10 year warranty
Sol-Ark 15K-2P-N
$10,860.00
The Sol-Ark 15K-2P-N is a 12kW All-In-One inverter that can be used in either an off-grid setting, or tied to the grid to provide back-up power, peak-shaving, or load-shedding. The Sol-Ark inverter spans the bridge between battery-less grid-tie inverters, and off-grid systems that can provide power when the grid goes down. The inverter can export excess solar PV to the grid, to make an effective net-metering system
17,000 Watt of Solar PV can be connected to charge the batteries, and/or export to the grid. The Sol-Ark inverter has three independent MPPT inputs (26A max. each), each allowing a wide Voltage range of 125 – 500 Volt (150 – 425 Volt MPPT range). The high-Voltage inputs allow for long PV strings, making it simpler to install solar PV.
The unit has a build-in transfer switch that allows for switching from grid-tie to off-grid mode in 5ms, making the ideal Uninterruptable Power Supply (UPS). This is fast enough to prevent computers from noticing or resetting.
Up to 12 Sol-Ark 15K-2P-N inverters can be stacked as a 240V split-phase system (144kW total), using a single battery bank. For 3-phase 208V up to 12 Sol-Ark inverters can be stacked (making for a 144kW system).
It meets all the grid-tie regulations and requirements for a code-compliant installation: UL/CSA-listing for the USA and Canada, the solar PV input includes AFCI and GFCI, minimizing the need for additional equipment.
Features
- 48 Volt battery bank
- Can be installed outdoors
- Cell phone app for monitoring
- Remote monitoring via Internet
- Build-in 2x 200A DC battery breaker
- 15 kW battery charger from solar PV
- 275 Amp battery charger from AC & solar PV
- Up to 500 Volt DC tripple-MPPT for solar PV
- Rapid Shutdown integration using Tigo TS-4F units
- 200 Amp 240V split-phase (48kW) pass-through capable
- 12000 Watt continuous AC output, 24kW for 10 seconds
- Works with lithium-ion, AGM, GEL, and flooded batteries
- Integrated relay for automatic-generator-start (AGS) functionality
- UL & CSA-listed
- 10-year warranty
- Sol-Ark 15K-2P-N manufacturer Web page
- Sol-Ark 15K-2P-N spec sheet (pdf)
- Sol-Ark 15K-2P-N brochure (pdf)
- Sol-Ark 15K-2P-N installation and operating manual (pdf)
Specifications
| Brand | |
|---|---|
| Mnfr. model | |
| Inverter type | |
| Battery Voltage | |
| Output power | |
| AC Voltage | |
| No. of MPPT | |
| Max. Voltage | |
| MPPT Voltage range | |
| Efficiency | |
| AC disconnect | |
| DC disconnect | |
| Arc-fault (AFCI) | |
| Ground-fault (GFCI) | |
| Temperature range | |
| Enclosure | |
| Weight | |
| Warranty |
