Enerwatt EWS-100-FLEX

Call for price

Out of stock

DISCONTINUED: Enerwatt EWS-100-FLEX, 100 Watt 32-cell flexible PV module (for 12V battery charging), 17.8V 5.62A, MC4 connectors

Out of stock

SKU: EWT-301-106 Category: Tags: ,

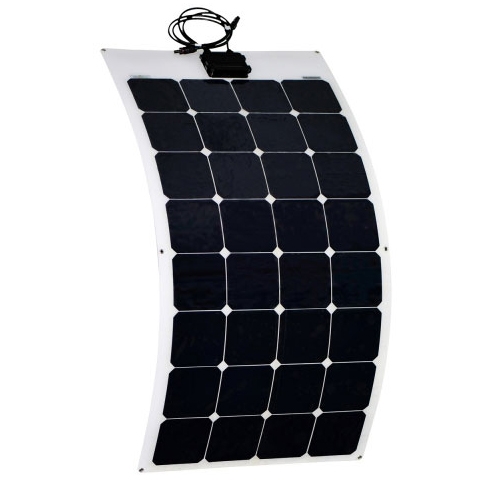

This is a flexible 100 Watt solar PV module with 32 cells, to directly charge batteries. The module can be glued to a curved surface, or the grommets embedded on the perimeter can be used to tie the module down. These modules are ideal for boat, RV etc., when a small module is sufficient.

This is a 32-cell panel with around 18 Volt output, which is ideal with a PWM controller to reliably charge a 12 Volt battery in all temperatures. Panels may be mounted in portrait or landscape orientation. Compact and rugged, just 4 mm thick, with MC4 connectors terminating the power leads.

These are very reliable PV modules: They have 5 year mechanical warranty and 30 year power output warranty.

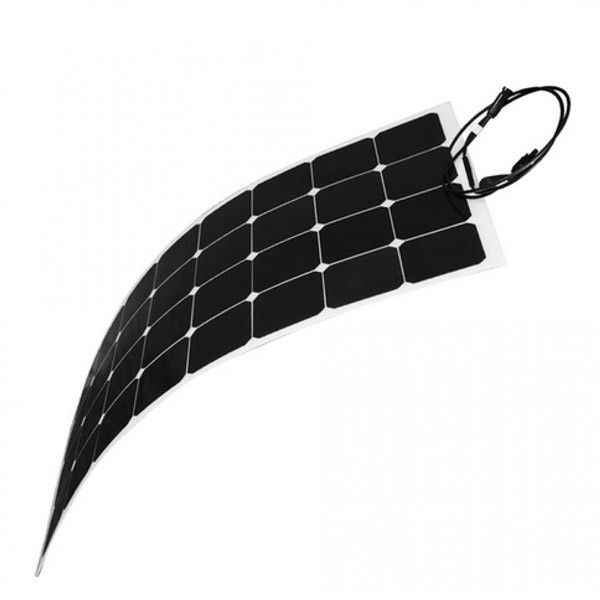

While these modules are indeed flexible, and will follow a (gently) curving surface, they will not bend 180-degrees and they cannot be rolled up. Any attempt to do that will result in permanent damage. The backplate is essentially a 4 mm layer of thick and fairly rigid plastic. Please keep that in mind when ordering this module.

Features

  • Rated for 600 Volt strings
  • 32 mono-crystalline cells, Vmp = 17.8 Volt, Imp = 5.62 Amp
  • 5 year full warranty, 30 years linear performance guarantee
  • Leads have MC4 connectors
  • Just 4 mm thick

Specifications

Brand

Mnfr. model

Output power

No. of cells

Cell type

Colour

Length

Width

Quantity

Warranty
