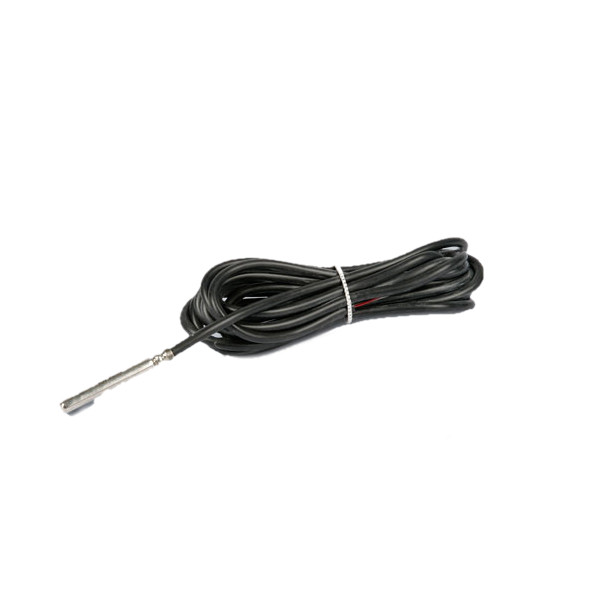

>>>Fronius Ambient Temperature Sensor

Description

The Ambient Temperature Sensor measures the air temperature for use with the Fronius Sensor Card / Box and the Datamanager. Due to its large temperature range the ambient temperature sensor is suited for measuring outside temperature as well as room temperature.

Details

Technical data
SensorPT1000
Measuring range-40°C to +180°C
Accuracy±0.8°C (in the range -40°C to 100°C)
DesignSensor in a cylindrical housing of stainless steel
DimensionsLength 50 mm, Ø 6 mm
Cable3 m Cu-cable; 2 x 0.5 mm, silicon isolated,
ferrules, UV-resistant
Max. cable length
(distance: Sensor Card/Box – sensor)
20 m

Mounting tip: For this sensor, there is no special mounting construction. The ambient temperature sensor can e.g. simply be placed under the pv-modules.
