Fronius Symo 15.0-3 Lite ECO

$3,823.90

Fronius Symo 15.0-3 Lite, 15kW 208V 3-phase, single-MPPT, with AFCI, 4,210,052,841

Find this useful? Share it with your friends!
SKU: FRO-225-125 Categories: , Tags: ,

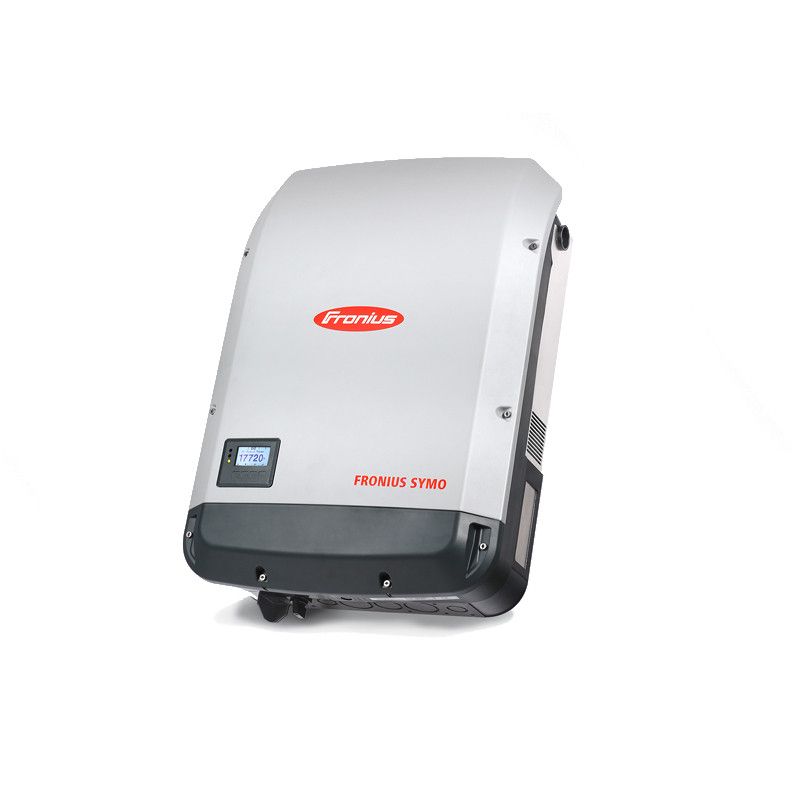

The transformerless Fronius Symo is the ideal compact three-phase solar inverter for commercial applications of all sizes. The Fronius Symo is the clear commercial choice: boasting power classes from 10 kW to 24 kW, all necessary features are fully integrated, Fronius SuperFlex Design with dual MPPT, and a streamlined installation process. The SnapINverter hinge mounting system, lightweight inverter and easy commissioning app make installation possible in under fifteen minutes.

Several industry-leading features come standard with the Fronius Symo including field proven Arc Fault Circuit Interruption (AFCI), CEC 2015 compliance, and Fronius’ superb online and mobile monitoring platforms when a Datamanager 2.0 card is added. Also field serviceable, The Fronius Symo is the most communicative, efficient, sustainable and streamlined three-phase string inverter available on the market.

The “Lite” Symo inverters do not have the datalogger card and do not have Web monitoring. Only one inverter with datalogger card is needed for every 100 inverters, the others can be daisy-chained together with Ethernet cables.

Features

  • Transformerless design for higher efficiency
  • Single-MPPT input (other Symo models are dual-input)
  • Very quick and easy installation due to Fronius’ unique SnapINverter design
  • Integrated DC disconnect
  • 1000 Volt DC strings capability
  • Very wide operating temperature from -40C through +60C
  • Sealed NEMA 4X housing for indoor and outdoor mounting
  • Can be mounted completely horizontal, for example for flat roof mounts
Find this useful? Share it with your friends!
Find this useful? Share it with your friends!

Specifications

Brand

Mnfr. model

Inverter type

Output power

AC Voltage

No. of MPPT

Max. Voltage

MPPT Voltage range

Efficiency

AC disconnect

DC disconnect

Arc-fault (AFCI)

Ground-fault (GFCI)

Temperature range

Enclosure

Weight

Warranty
