DISCONTINUED: Hanwha Q.PEAK DUO XL-G10 480W Mono, 78-cell (156 split-cell) mono PV module, whole pallet of 30, silver frame, MC4 connectors, cUL

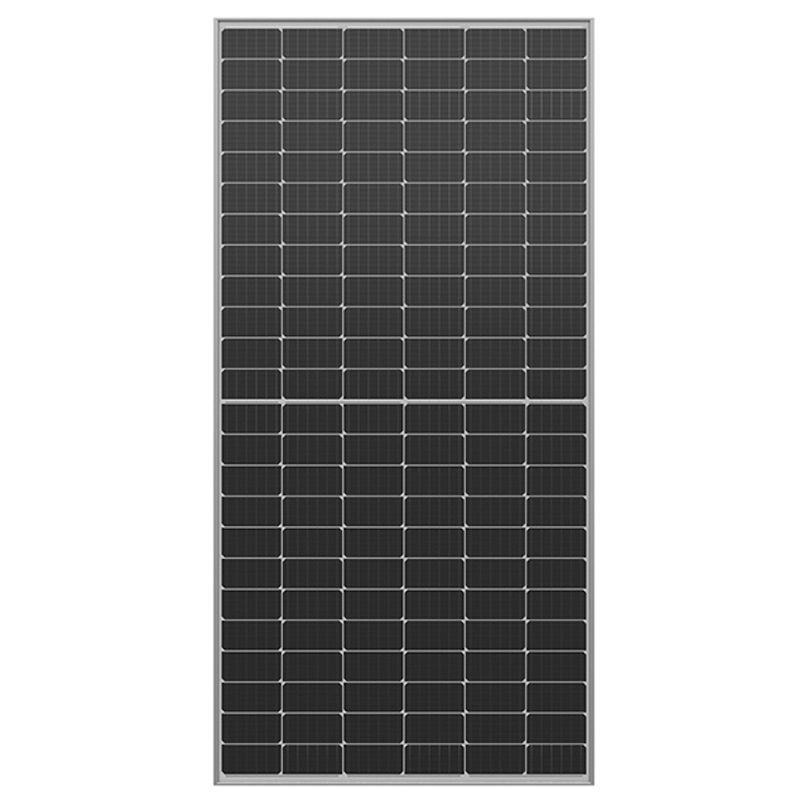

Hanwha Solar Q.PEAK DUO XL-G10 480W Pallet
Call for price
Out of stock
Out of stock
A high-yield Hanwha 78-cell module (actually 156 split-cells) with 480 Watt rated output. Korean-based Hanwha is an A-brand solar module producer that delivers very consistent perfectly-made modules that simply perform as advertised, year after year, for a price that is hard to beat. The cells are made by the German Q-Cell company, designed to achieve the best performance under real-word conditions – even with low radiation intensity and on hot summer days.
This is for a full pallet of 30 panels. Single panels are available as well.
Features
- 35 mm black frame
- Rated for 1500 Volt strings
- Mono-crystalline Q-cells, 156 split-cell module
- High-yield panel, with an efficiency rate of up to 21.2%
- Guaranteed positive power tolerance sorting: -0 … +4.99 Wp
- Uses Multi-Contact brand name MC4 connectors (meets Ontario’s electrical code)
- Low temperature coefficients – resulting in higher real-world yield and high CEC rating
- Excellent low-light and temperature behavior, consistently rated no. 1 by real-world tests in Photon Magazine
- Anti LID, and anti-PID Technology, Hot-Spot-Protect, and Traceable Quality Tra.Q™ for long-term reliability
- High-tech aluminum alloy frame, certified for high snow (5400 Pa) and wind loads (2400 Pa) regarding IEC
- 12-year full product warranty and 25-year linear performance guarantee
- UL and CSA listed for Canada & USA
- Our Hanwha manufacturer info page
- Hanwha Q-cells Manufacturer Web site
- Hanwha Solar Q.PEAK DUO XL-G10 480W spec sheet (pdf)
- Hanwha Solar Q.PEAK DUO XL-G10 480W installation manual (pdf)
- Hanwha Solar Q.PEAK DUO XL-G10 480W warranty statement (pdf)
Specifications
