MidNite Solar MNE175XWP-SINGLE


MidNite Solar MNE175XWP-SINGLE, a rapid shut down compliant E-Panel that includes a remote trip breaker upgrade and a battery disconnect module for use with the Birdhouse

Find this useful? Share it with your friends!
SKU: MID-222-232 Categories: , Tags: ,

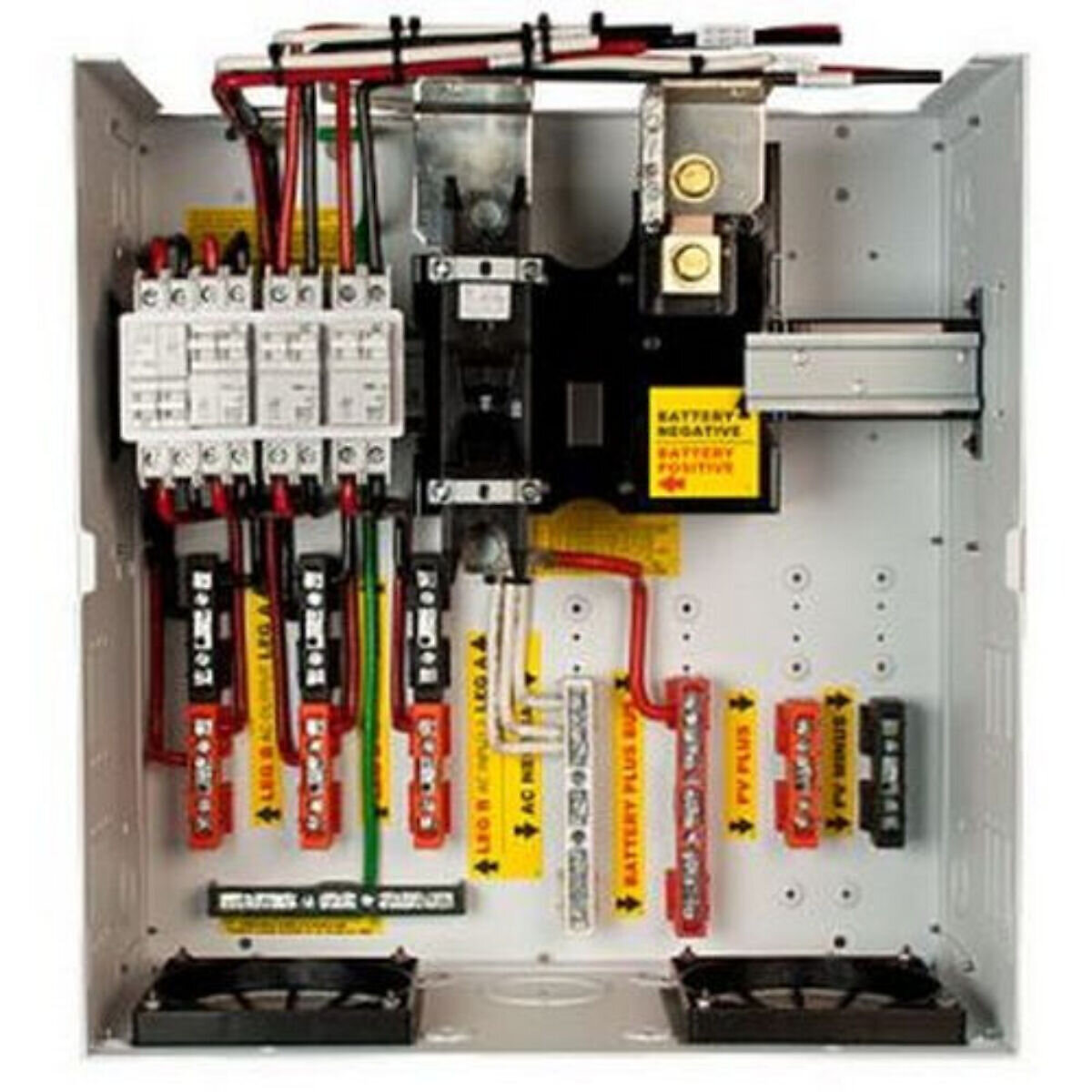

The MNE175XWP-SINGLE is an E-Panel for a single Schneider Electric XW Plus inverter/charger. The XW Plus inverter is mounted directly above the E-Panel for a 16 in wide assembly.


  • Inverter battery breaker
  • Two separate 60 Amp AC inputs for generator and utility
  • 60 Amp AC bypass switch
  • Knockouts for up to seven DIN rail mount DC DCGFP63 or AC breakers and 12 panel mount or DC-GFP80 breakers
  • Massive tin plated copper bus bars directly connect to the XW’s battery terminals
  • Bus bars for AC inputs
  • AC output neutral, ground, PV + in, PV- in, Bat +, Bat-
  • 500 Amp shunt (MNSHUNT)
  • Metal dead front behind the reversible door
  • Charge controllers mount to either side or both sides at once for dual controllers
  • AC bypass can be configured as input & output on/off as well as AC bypass
  • The XW MPPT controller requires no mounting bracket while FM60, FM80 and Classic require Right or Left E-Panel charge control mounting brackets
  • Main breaker current rating – 250
  • Number of spaces – 19
  • Environmental rating – type 1 (indoor)
  • Maximum wire size – 4/0 AWG
  • Maximum AC voltage – 240VAC
  • Maximum DC voltage – 300VDC
  • Warranty – 5 years
  • Listed by ETL for US & Canada
Find this useful? Share it with your friends!
Find this useful? Share it with your friends!


Weight 40.5 lbs
Dimensions 21 × 21 × 13 in
