MidNite Solar MNE250STS

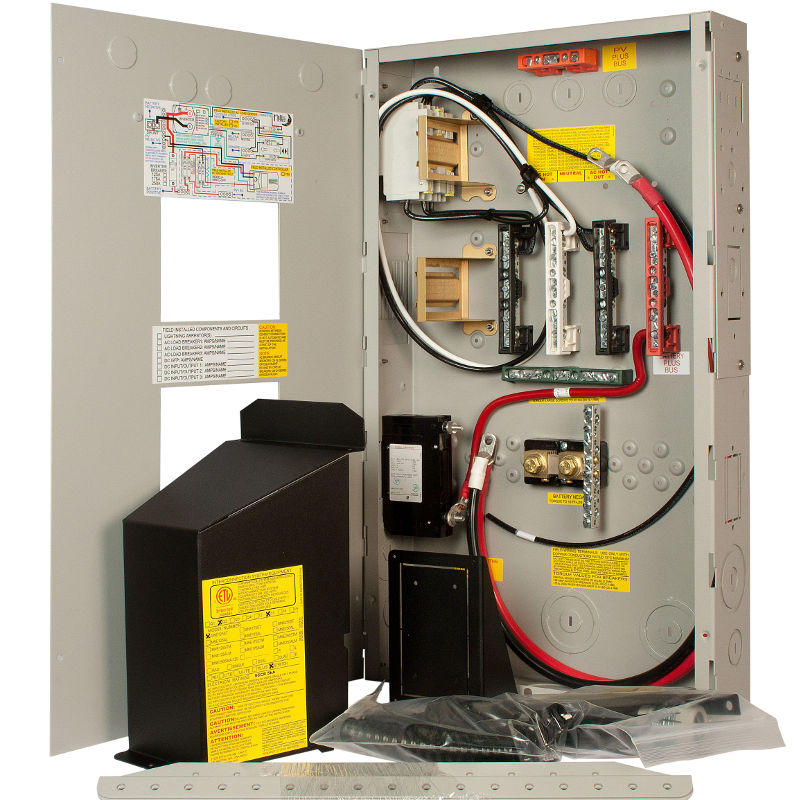

MidNite Solar MNE250STS, a grey, steel, stretched E-Panel for Outback inverter with a 250A/125VDC inverter breaker, left hinge

Find this useful? Share it with your friends!
SKU: MID-222-236 Categories: , Tags: ,

The MNE250STS is a stretched, grey steel E-Panel with a 250A/125VDC breaker. It comes standard with left hand door.

The E-Panel simplifies the installation process for your Outback inverter system. It comes with all the properly sized over-current devices like circuit breakers and DC disconnects as required by the national electric code. All MidNite E-Panels are ETL listed to UL and CSA standards and can be used in residential and small commercial installations. The design of the E-Panel allows the inverter to mount directly to the hinged door. This saves you wall space, time, and money (no additional conduits or enclosures are necessary for connecting the inverter to the E-Panel). The panel comes factory pre-wired and all field wiring connection points are clearly labeled (solar, battery, generator, etc.).


  • Main breaker current rating – 250A
  • Number of spaces – 9
  • Environmental rating – type 1 (indoor)
  • Maximum wire size – 4/0
  • Maximum AC voltage – 277VAC
  • Maximum DC voltage – 300VDC
  • Warranty – 5 years
  • Listed by ETL for US & Canada
Find this useful? Share it with your friends!
Find this useful? Share it with your friends!


Weight 39 lbs
Dimensions 28 × 19 × 11 in

Mnfr. model

Max. current
