MidNite Solar MNE250XWP-SINGLE

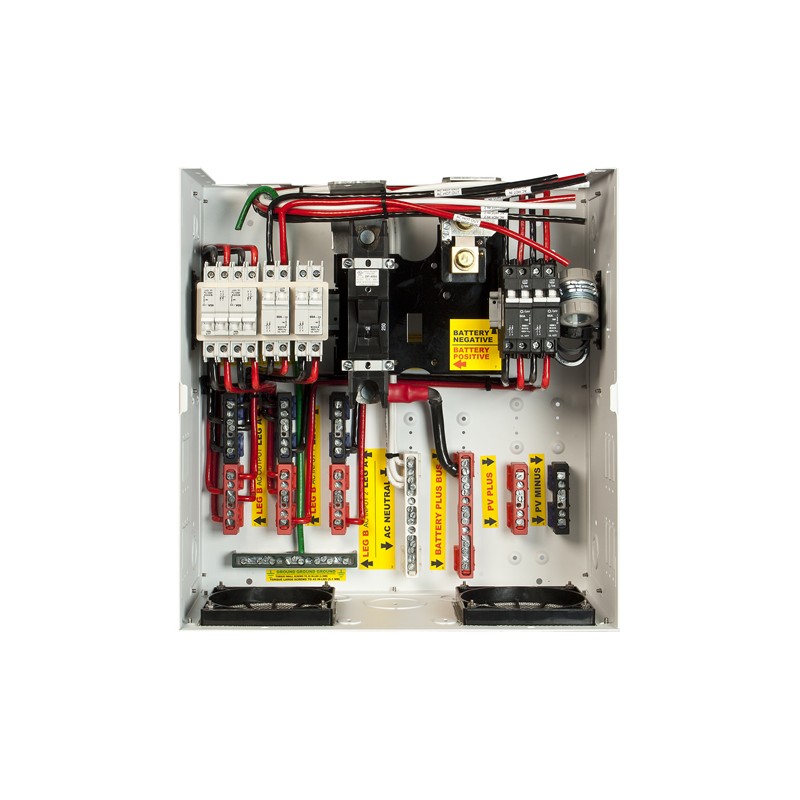

MidNite Solar MNE250XW, a grey, steel E-Panel for Xantrex inverter with 250A/125VDC inverter breaker, left hinge

Find this useful? Share it with your friends!
SKU: MID-222-238 Categories: , Tags: ,

The MNE250XWP-SINGLE is a 250A/125 VDC, grey, steel E-Panel designed a to work with a single Schneider Electric XW Plus inverter. It comes standard with a left hinge and accomadates various different kinds of MPPT charge controllers.  When mounted, the XW MPPT controller requires no mounting bracket. However, the FM60, FM80 and Classic require right or left E-Panel charge control mounting brackets. The right hand bracket is furnished standard.


  • Inverter battery breaker
  • Two separate 60 Amp AC inputs for generator and utility
  • 60 Amp AC bypass switch
  • Knockouts for up to seven DIN rail mount DC DCGFP63 or AC breakers and 12 panel mount or DC-GFP80 breakers
  • Massive tin plated copper bus bars directly connect to the XW’s battery terminals
  • Bus bars for AC inputs
  • AC output neutral, ground, PV + in, PV- in, Bat +, Bat-
  • 500 Amp shunt (MNSHUNT)
  • Metal dead front behind the reversible door
  • Charge controllers mount to either side or both sides at once (for dual controllers)
  • AC bypass can be configured as input & output on/off as well as AC bypass (Note: The XW 60 Amp controller can mount on the right side only due to their isolated communications compartment)
  • Main breaker current rating – 250A
  • Number of spaces – 19
  • Environmental rating – type 1 (indoor)
  • Maximum wire size – 4/0 AWG
  • Maximum AC voltage – 240VAC
  • Maximum DC voltage – 300VDC
  • Warranty – 5 years
  • Listed by ETL for US & Canada
Find this useful? Share it with your friends!
Find this useful? Share it with your friends!


Weight 40.5 lbs
Dimensions 21 × 21 × 13 in

Mnfr. model
