MidNite Solar MNPV6HV-DISCO 4X-PSB

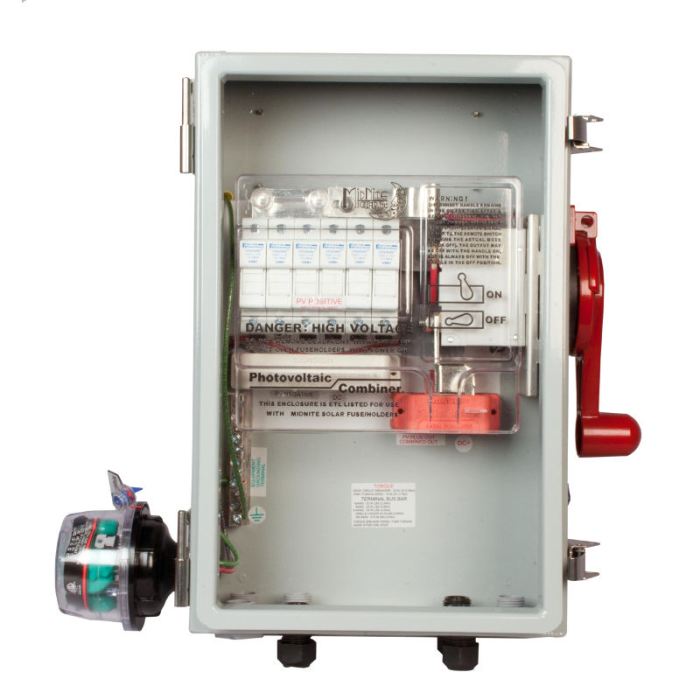

MNPV6HV-DISCO 4X-PSB is a PV disconnecting combiner for up to 6 strings, 125 Amp bus bars, a 100 Amp load break rated switch and a 600 volt maximum capacity. The -PSB variety also includes MidNite’s PSB for connecting to a remote disconnect MNBIRDHOUSE to provide Rapid Shutdown capability.

Features

• Disconnect has built in shunt trip with positive feedback
• MidNite PSB included, Birdhouse compatible
• Optional PV connected power supply
• Optional AC connected power supply for redundancy
• Transparent deadfront & color coded busbar guards included
• Type 4X aluminum enclosure (no rust, won’t turn to dust)
• Six Fuseholders (MNTS) installed
• Six 15A/600V fuses installed
• Load Break Rated
• Current Rating – 100A
• Max. Output Wire Size – 2/0
• Output Circuits – 1
• 90^o C connections
• Warranty – 5 years
• UL-listed (no CSA-listing)

Hardware Includes:

• One MNSPD-600 (Surge Protection Device)
• Six 1/2″ strain reliefs (MNSR-1000)
• Eight 1/2″ locknut
• Two 1/2″ hole plug’s with gaskets
• One 10-32 X 7/8″ bolt
• One 10-32 keps nut
• One terminal pin 18-22 AWG.
• One terminal pin 10-12 AWG.
• One ring terminal 10-12 AWG.
• One blue wrench
