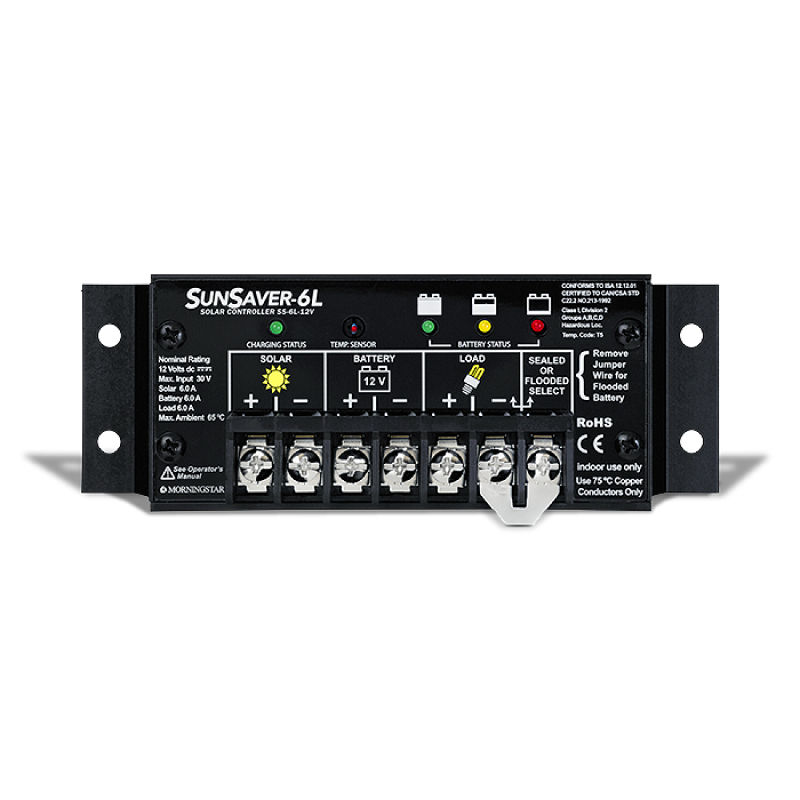

Morningstar SunSaver SS-6L-12V

$115.77

Morningstar SunSaver SS-6L-12V, a 12V, 6A PWM charge controller with low Voltage disconnect (LVD)

Find this useful? Share it with your friends!
SKU: MOR-164-115 Categories: , Tags: ,

Morningstar’s SunSaver™ is the world’s leading small solar charge controller for professional and consumer applications. This device includes a combination of features and capabilities not found in other small PV controllers. It is rated for hazardous locations – class 1, division 2, groups A-D, making it the preferred choice for oil & gas applications. The SS-6L-12V is a 12V, 6 Amp, PWM charge controller equipeed with a low Voltage disconnect and has a warranty of five years.

Features

  • Seven versions available
  • 100% solid state
  • Series design (not shunt)
  • True 0 to 100% PWM duty cycle
  • Setpoint accuracy 12V: +/-25mV; 24V: +/-48mV
  • Fully encapsulated in epoxy potting
  • Marine rated terminals / anodized case
  • Temperature compensation
  • Sealed / Flooded battery select
  • Parallel for 40 Amps or more
  • Low Voltage disconnect
  • Warranty – five years
Find this useful? Share it with your friends!
Find this useful? Share it with your friends!

Specifications

Brand

Mnfr. model

Controller type

Max. Voltage

Battery Voltage

Max. current

Arc-fault (AFCI)

Ground-fault (GFCI)

Temperature range

Weight

Warranty
