>>>OutBack FW-X240

OutBack FW-X240

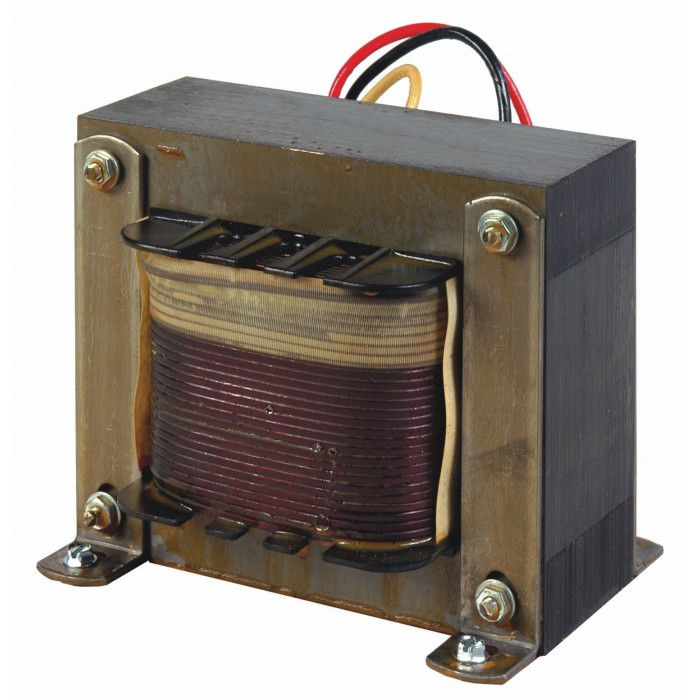

OutBack FW-X240, a 120/240 VAC, 60Hz transformer for step-up, step-down or balancing

SKU: OBK-221-112 Categories: , Tags: ,


The FW-X240 is a 4 kVA, 120/240 VAC, 60 Hz autotransformer with a 25 Amp, dual pole breaker for mounting inside of FW500 or FW1000 AC enclosures. It is Used to step-up 120VAC into 120/240VAC split phase and also used as a step down/balancing transformer on the output of a 240VAC generator to balance loads across the two legs.



Mnfr. model

Max. current

AC Voltage


There are no reviews yet.

Be the first to review “OutBack FW-X240”

Your email address will not be published. Required fields are marked *
