>>>RPVU PV-Wire 10 AWG Black

Description

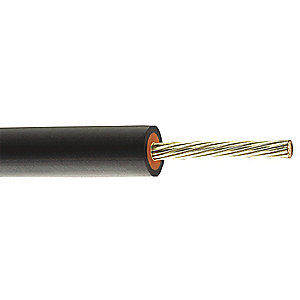

Black 10 AWG PV-Wire, 500′ spool.

The wire is 10 AWG 1000 Volt rated “PV Wire” stamped, CSA and UL approved for Canada and the USA.

This is General Cable type 12411.711100, a very flexible XLPE, multi-stranded wire. You can find the specs in the ‘Documents’ section. The wire carries the following markings:

GENERAL CABLE® (PLANT OF MFG) SUNGEN® 600 V PV WIRE DIR BUR OR 2000 V RHH OR RHW-2 OR 600 V USE-2 (SIZE) 90°C WET OR DRY SUN RES (UL) -40°C VW-1 (CSA) RPVU90 1000 V MONTH/YEAR OF MFG SEQUENTIAL FOOTAGE MARK

Features

  • Rated 90°C wet and dry
  • Rated for direct burial
  • Deformation-resistant at high temperatures
  • Excellent moisture resistance, exceeds UL 44
  • Stable electrical properties over a broad temperature range
  • Increased flexibility
  • Excellent resistance to crush and compression cuts
  • Resistant to most oils and chemicals
  • UV/sunlight-resistant
  • Meets cold bend and cold impact tests at -40°C

Industry Compliances

  • UL 4703 Type PV, UL File # E323451
  • National Electrical Code (NEC)
  • ICEA S-95-658/NEMA WC70
  • UL 44 Type RHH or RHW-2, UL File # E90494
  • UL 854 Type USE-2, UL File # E90499
  • CSA C22.2 No. 271 RPVU90

Flame Test Compliances

  • UL 1581 VW-1
  • For sizes 1/0 and larger: IEEE 383, IEEE 1202/CSA FT4

Other Compliances

  • EPA 40 CFR, Part 261 for leachable lead content per TCLP
  • OSHA Acceptable

Specifications

Brand

,

Mnfr. model

Gauge

Length

Colour
