Southwire PV-Wire / RPVU 10 AWG Red

$249.00

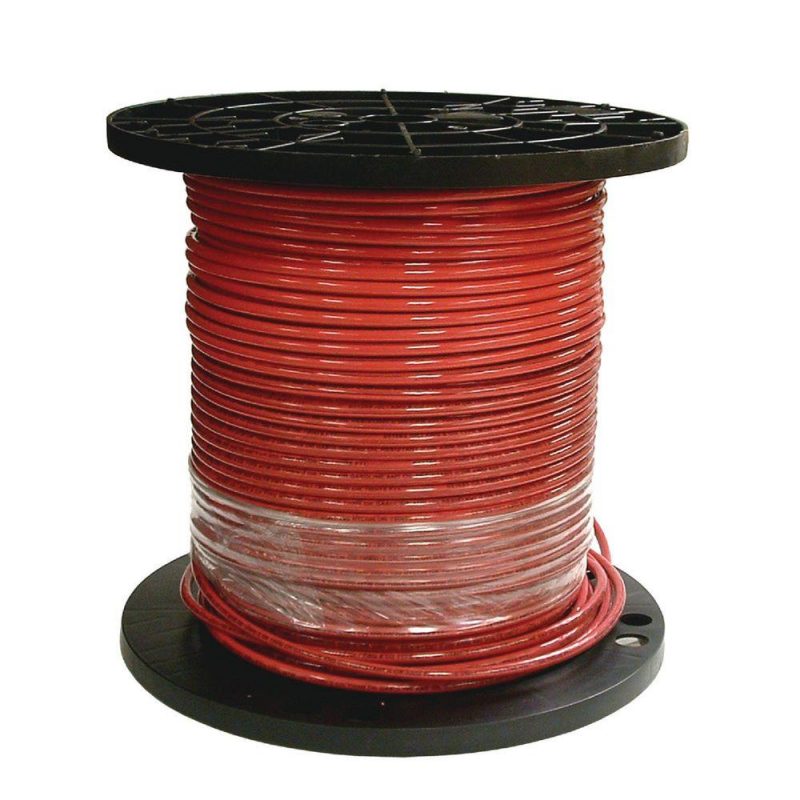

Southwire 58367103 PV-Wire, 2kV, 10 AWG, RPVU90 XLPE, RED, 500 foot spool

Description

Red 10 AWG PV-Wire, sold as a 500 foot spool. We also sell this wire by the foot (at a somewhat higher price-per-foot). We have male and female MC4 connectors for this wire available as well.

The wire is 2000 Volt rated “RPVU90” stamped, CSA approved for Canada.

This is Southwire type 58367103, XLPE, multi-stranded wire with a bright red jacket. You can find the specs in the ‘Documents’ section. The wire carries the following markings:

SOUTHWIRE (M) LL90458 CSA 10 AWG (5.26mm2) CU XLPE RPVU90 1000V / 2000V -40°C SR DIR BUR —RoHS MONTH/YEAR OF MFG SEQUENTIAL FOOTAGE MARK

Features

  • Rated 90°C wet and dry
  • Rated for direct burial
  • Stranded copper, flexible, 19 strands
  • XLPE insulation
  • Deformation-resistant at high temperatures
  • Excellent moisture resistance, exceeds UL 44
  • Stable electrical properties over a broad temperature range
  • Excellent resistance to crush and compression cuts
  • Resistant to most oils and chemicals
  • UV/sunlight resistant
  • Meets cold bend and cold impact tests at -40°C

Industry Compliances

  • CSA C22.2 No. 38 – Thermoset-Insulated Wires and Cables
  • CSA SUN RES – for Sunlight Resistant rating
  • CSA C22.2 No. 271-11
  • ASTM B3, B8, B787
  • RoHS Compliant

Flame Test Compliances

  • FT1 – Flame Test (1,706 BTU/Hr nominal – Vertical Wire Flame Test)
  • FT4 – Flame Test (70,000 BTU/Hr – Vertical Tray Flame Test)
  • FT1 for 600V, 1kV or 2kV
  • FT1 and FT4 on 1kV/2kV only

Specifications

Brand

Mnfr. model

Max. Voltage

Max. current

Gauge

Length

Colour
