10kW Grid-Tie Kit (Micro-Inverters)


10 kW Grid-Tie Kit (10,270 Watt in solar PV), with APS micro-inverters, for Net-Metering or MicroFIT

SKU: GTK-244-100 Categories: , Tags: , , ,

10,270 Watt in solar PV, 9,984 Watt in micro-inverters.
Can produce up to 11,800 kWh/year (for a good south-facing roof in southern/eastern Ontario). This kit can be used for a Net-Metering system or for an Ontario MicroFIT contract, while staying within the 10 kW limit (determined by the inverters). All the parts are code-compliant for a system that when installed correctly will pass electrical inspection.

Pallet & Repacking Fee

Please note that a $45 “Pallet and Repacking Fee” will be added for all partial pallets with solar panels (i.e. anything less than a full skid of panels). We will be happy to refund this fee if you bring the pallet back to us in good shape, so it can be re-used. This fee is needed to cover our cost of having custom oversized pallets made to ship solar panels on (and those pallets cost us well over $50 each!).

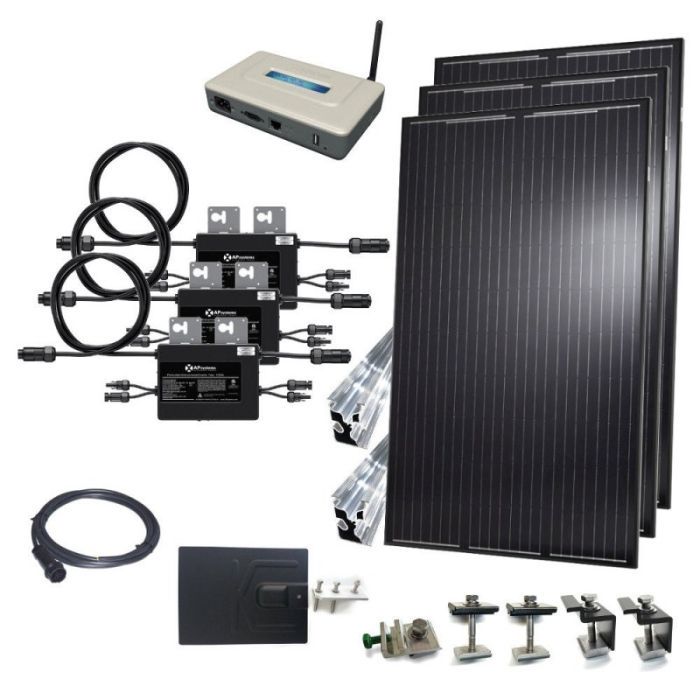

This kit contains the following components:

26x Hanwha Solar Q.PEAK DUO BLK ML-G10+ 395 Watt, 66-cell (132 split-cell) mono PV module, black-on-black
13x APsystems DS3-L, 2-panel micro-inverter, 768 Watt output, 240V split-phase, for 60/66-cell or 120/132-split-cell panels
13x APsystems AC Bus/Trunk Cable, 2m drop cable for DS3 & YC600 inverters, 10 AWG, 240V AC, per inverter/connector
1x APsystems ECU-R, energy communications unit for YC600 and YC1000, Wifi & Zigbee
3x APsystems AC Bus End Cap, branch terminator end caps
1x APsystems AC Connector Unlock Tool, disconnects inverter from trunk cable connector
1x MidNite Solar MNPV6-DISCO AC MICRO, 3 string combiner for 240 Volt AC micro-inverters, UL & CSA listed, NEMA-3R
3x MidNite Solar MNEAC30-2P, 30A 120/240 VAC, DIN rail mount breaker, 2 poles (26mm), ETL listed in the US and Canada
12x Kinetic Solar Rapid One Rail 10’8″, KRAPID1-128-M (each, holds exactly 3 panels in portrait)
4x Kinetic Solar Rapid One Rail 14’2″, KRAPID1-170-M (each, holds exactly 4 panels in portrait)
10x Kinetic rail splice/joiner with integrated bonding washers, KJS2-MA (each)
54x Kinetic 3″ “L” Bracket Kit, with K-Nut, S.S. Bolt, washer and lock washer, KLB3-M (each)
54x Kinetic Flashing Kit with 3″ Lag bolts, KFLK-3 (each)
6x Proflex tri-polymer roof sealant, good for 50 years under UV-exposure
12x Kinetic Black End Caps for Rapid One Rail, KRCP-B (each)
13x Kinetic micro-inverter mounting kit, side-of-rail mounted, KHMNS-MA (each)
46x Kinetic Mid Clamp – 30 – 46mm BLACK – with K-Nut, bolt, and integrated WEEB, KMWC3046-BM (each)
12x Kinetic End Clamp – 32mm BLACK – with K-Nut, S.S. Bolt, Washers and Lock Washers, KEC32-B (each)
3x Kinetic WEEB Bonding clip for Kinetic Rails and Joiner, KSR-WEEB (each)
3x Kinetic Ground Lug Mount (K-Nut) with Ground Lug, KHGLUG-M (each)
2x HellermannTyton PA66UV 12″ cable tie for solar PV, pack of 100, UV resistant for outdoor use, T50I0UVC2

This kit contains racking for a layout of 2 rows of 9 panels and 1 row of 8 panels in portrait orientation for a shingle roof. We can tailor the kit to exactly fit your needs for your roof, or ground mount: We can design it with more solar modules, or less, and change the roof layout to fit your roof, or change parts to fit a steel roof. Just contact us and let us know how we can help!

This 10kW Grid-Tie Kit includes the major components needed to install a 10.3 kW grid tied solar array on your roof. With electricity prices increasing, there is no better way to reduce your costs while reducing your carbon footprint than with solar PV!

This system is perfect for Net-Metering! The average Canadian household consumes 12,000 kWh of electricity per year. This 10 kW grid-tie system can offset just about all of that electrical consumption, greatly reducing your electrical bill! For more information check out our Net-Metering article.

This package includes APsystems 768 Watt dual-panel micro-inverters. APsystems is a very well known micro-inverter company that is known for reliable inverters that are easy to install, and very cost-competitive when compared to other micro-inverter brands. The APS inverters come with (free) panel-level monitoring via the Internet. With micro-inverters, rapid shut down and squirrel guard are not required which makes for an easier installation and even more savings!

The racking included in this kit is designed for 2 rows of 9 panels and 1 row of 8 panels in portrait mounted on a shingle roof. We can customize the racking in this system to fit your roof: If you have roughly 600 square feet of shade free roof facing between East and West, we can design a 10 kW solar system for your roof!

Black-On-Black modules: The Black-On-Black Hanwha 395 Watt panels make for a great-looking system! These panels look very uniformly dark, nearly black, making for a very pleasing look on any roof! We even included black clamps and black end-plates to create a very “uniform looking” and aesthetically pleasing finish. The solar panels do not just look good, they also perform great and last a very long time (25-year warranty)!

Do it Yourself! We can design your system and provide advice through the installation process. If you posses good DIY skills and are not afraid of working on a roof then a Do-It-Yourself grid tied solar installation could very well be in the cards for you: This can save quite a bit of money and make payback and Return-On-Investment significantly better! We have years of experience designing and installing system. We can even help with the application process! If you have questions give us a call or email and we’d be happy to help!


Solar power

Output power

Inverter type

AC Voltage
