Conext PDP


Conext / Schneider XW PDP, Power Distribution Panel, 865-1015-01

Find this useful? Share it with your friends!
SKU: CXT-222-105 Categories: , Tags: , ,

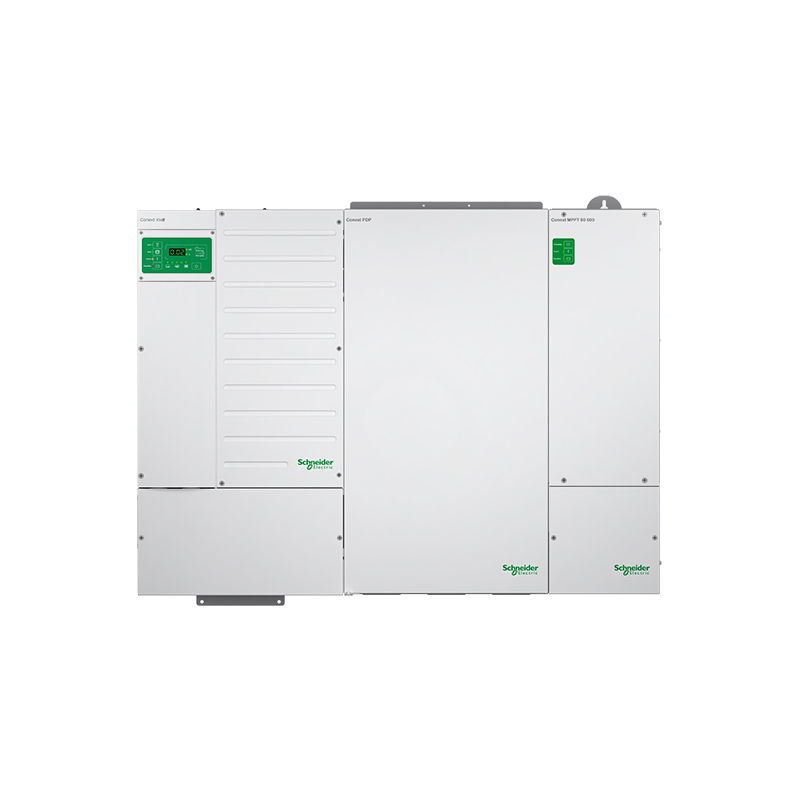

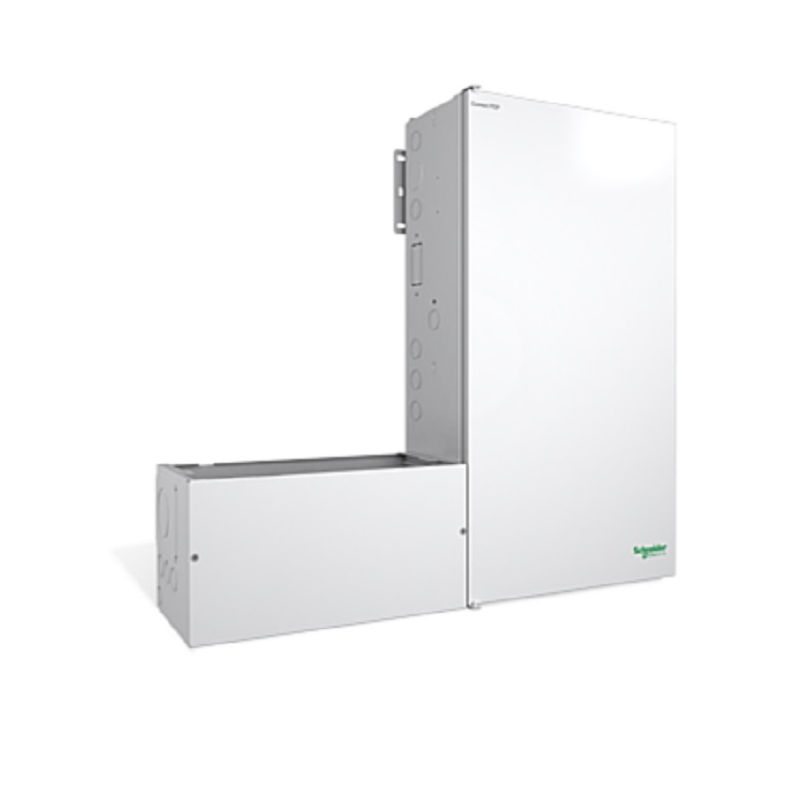

The Conext XW Power Distribution Panel is factory-wired and labeled to support the integration of multiple Conext XW inverter/chargers and Conext MPPT solar charge controllers with a single battery bank. The PDP includes breakers, bus bars and cables for the installation of a single XW inverter/charger. With space to add wiring and breakers, a single PDP supports one XW inverter/charger, a generator, and either a MPPT 80 600V or MPPT 60 150V  charge controller. The XW PDP supports single-phase, split phase or three-phase installations. A field-reversible door and multiple conduit knockout entry points allow for the enclosure to be mounted and configured on either side of the inverter/charger.

Conext XW Power Distribution Panels are designed to save significant time and money during a code-compliant installation, when compared to custom solutions. A mounting bracket and Conext XW Conduit Box are also supplied with each XW PDP.


  • UL & CSA-listed
