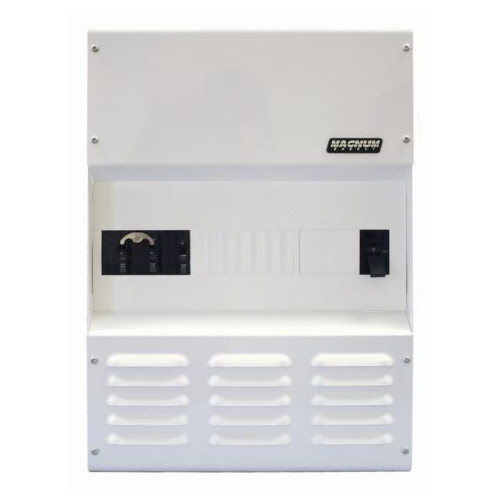

Magnum MPSH175-30D


Magnum Energy MPSH175-30D, Panel Single Enclosure High Power with 30A dual pole AC input breaker, 175 ADC breaker

Find this useful? Share it with your friends!
SKU: MAG-222-162 Categories: , Tags: ,

The MP (Magnum Panel) enclosures have been specifically designed to combine all of the major components required for a high power renewable energy system — inverter/battery disconnect, AC overcurrent protection, grounding connections, and a full system inverter bypass switch as a convenient way to isolate the inverters for battery maintenance — into easy to install pre-wired enclosures.

Designed for multiple inverter applications, the MP Series enclosures feature convenient front panel operation, and with the optional Router (ME-RTR), will allow you to easily set up, monitor, and operate up to four MS-PAE inverter/chargers together (must be identical models to parallel stack).

In addition to saving time and money by providing a simple and convenient inverter installation, the MP enclosures ensure safety and reliability by providing a UL and CSA certified and code compliant system.


  • Expandable: start with the enclosure and just one inverter and in the future expand to two inverters with ease, using the MPX.
  • Easy Installation: all connections are frontmounted, including AC and DC breakers and the MPX.
  • Labor saving: panel is prewired for fast installation, saving labor costs.
  • DC load breakers: fits either din rail or backmount DC load breaker.
  • Convenient knockouts: knockouts on the side of the enclosure are compatible with most charge controllers.


  • One 175A DC breaker
  • 30A Dual Pole AC Input Breaker
  • AC Output Breaker
  • AC Bypass Breaker
  • 1000A/100mv DC shunt
  • Inverter AC input protection
  • MPX extension includes AC/DC circuit protrction and wiring
