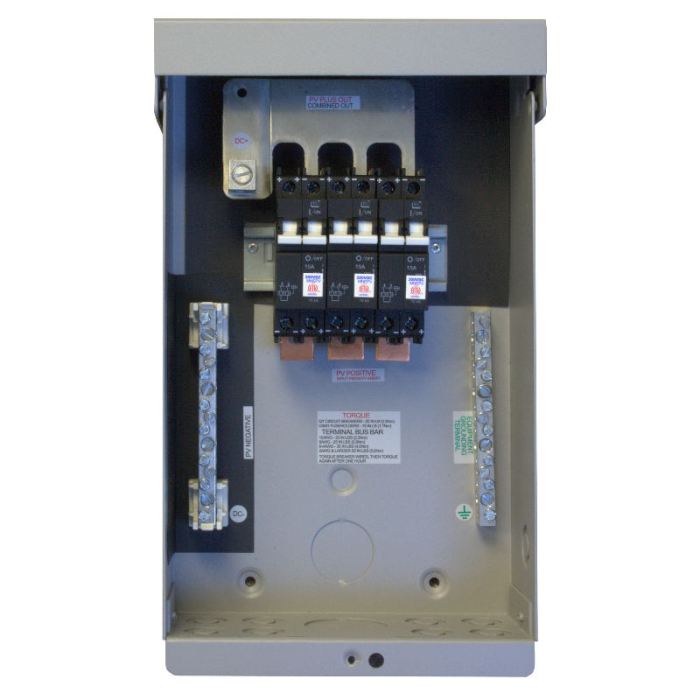

MidNite Solar MNPV6-250

$258.43

Midnite Solar MNPV6-250, 3-string combiner, holds three 300 VDC breakers, NEMA-3R

Find this useful? Share it with your friends!
SKU: MID-108-171 Categories: , Tags: ,

The MNPV6-250 is a 3-string PV combiner box for use with 200 and 250 VDC charge controllers. The combiner has room for three 300 Volt DC rated breakers. It has a gray aluminum NEMA type 3R rainproof enclosure with insulating dead front.

The combiner comes without breakers. The 15 Amp 300 Volt DC rated MNEPV15-300 breakers are normally used with this combiner.

Features

  • UL/CSA listed for North America
  • All aluminum powder coated housing that won’t rust, rain-proof NEMA-3R rated
  • Flip up cover that can stay in the open position during installation
  • PV Negative bus bar with 15 useable openings
  • Chassis ground bus bar with 14 useable openings
  • Standard din rail to mount up to three 300V breakers
  • 168 Amp tin plated copper bus bar to combine breaker outputs
  • Dead front cover snaps into place after wiring is complete for safety
  • Knockouts for PV in and PV out on bottom and sides
  • 5-year warranty
Find this useful? Share it with your friends!
Find this useful? Share it with your friends!

Specifications

Weight 10 lbs
Dimensions 19 × 16 × 5 in
Brand

Mnfr. model

Max. no. strings

Max. current

Max. Voltage

Enclosure

Warranty
