Midnite Solar MNPV6HV-DISCO, disconnecting 6-string combiner, 600 VDC, NEMA-3R

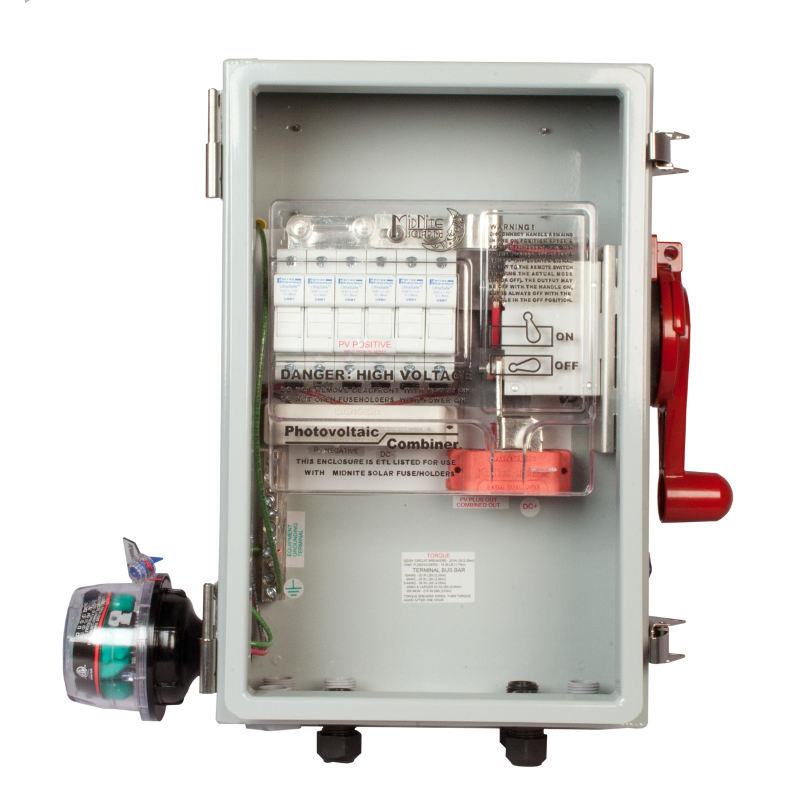

MidNite Solar MNPV6HV-DISCO
MidNite Solar MNPV6HV Disco PV disconnecting combiner for up to 6 strings, Nema 4X, 125 amp busbars, 100 amp load break rated switch.
The MNPVHV series of combiners are designed for indoor / outdoor use. The MNPV6HV is a basic disconnecting combiner. Built to meet new code requirements, these combiners feature superior safety, compact size, easy installation, and an affordable price point.
Each disconnecting combiner is capable of interfacing with up to two of Midnite’s Emergency Disconnect Switches (the Birdhouse) located at ground level. Communications between the combiner and the Birdhouse is via 600 volt CAT5 cable. The disconnect assures verified visual and audible indication of PV voltage status.
- Disconnect has built in shunt trip with positive feedback
- Birdhouse compatible
- Optional PV connected power supply
- Optional AC connected power supply for redundancy
- transparent deadfront & color coded busbar guards included
- Nema 4X aluminum enclosure (no rust, won’t turn to dust)
- Fuseholders included
- Load break rated
- 15A / 600V fuses included
- MNSPD600 lightning arrestor included
- 90ºC connections
- ½” strain reliefs and hole plugs included
|Max. no. strings|
|Max. input Voltage|
