OutBack GSLC175-PV-120/240


OutBack GSLC175-PV-120/240, a prewired GS Radian series load center with a 60 Amp, 120/240 VAC bypass and either one or two PV disconnects, 80 Amp GFDIs and 175 Amp breakers

Find this useful? Share it with your friends!

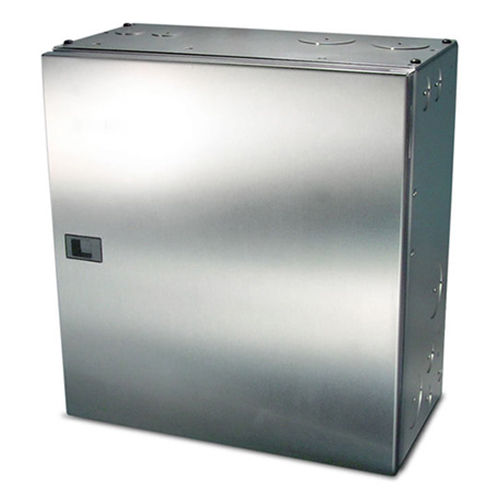

OutBack Power’s GS Load Centers are an integrated connection enclosure series for AC and DC system connections in OutBack Radian Series inverter/charger applications, through provided inverter DC overcurrent protection and disconnects, dual AC inputs, grid-tie inverter connection and a 120/240VAC maintenance bypass.

Designed for use with the Radian Series inverter/charger family, the options offer solutions for ground-up custom designs or factory pre-wired configurations for specific applications. The OutBack GS Load Centers simplify the configuration, distribution, and implementation of energy storage of the Radian Series inverter/charger through a standardized approach.

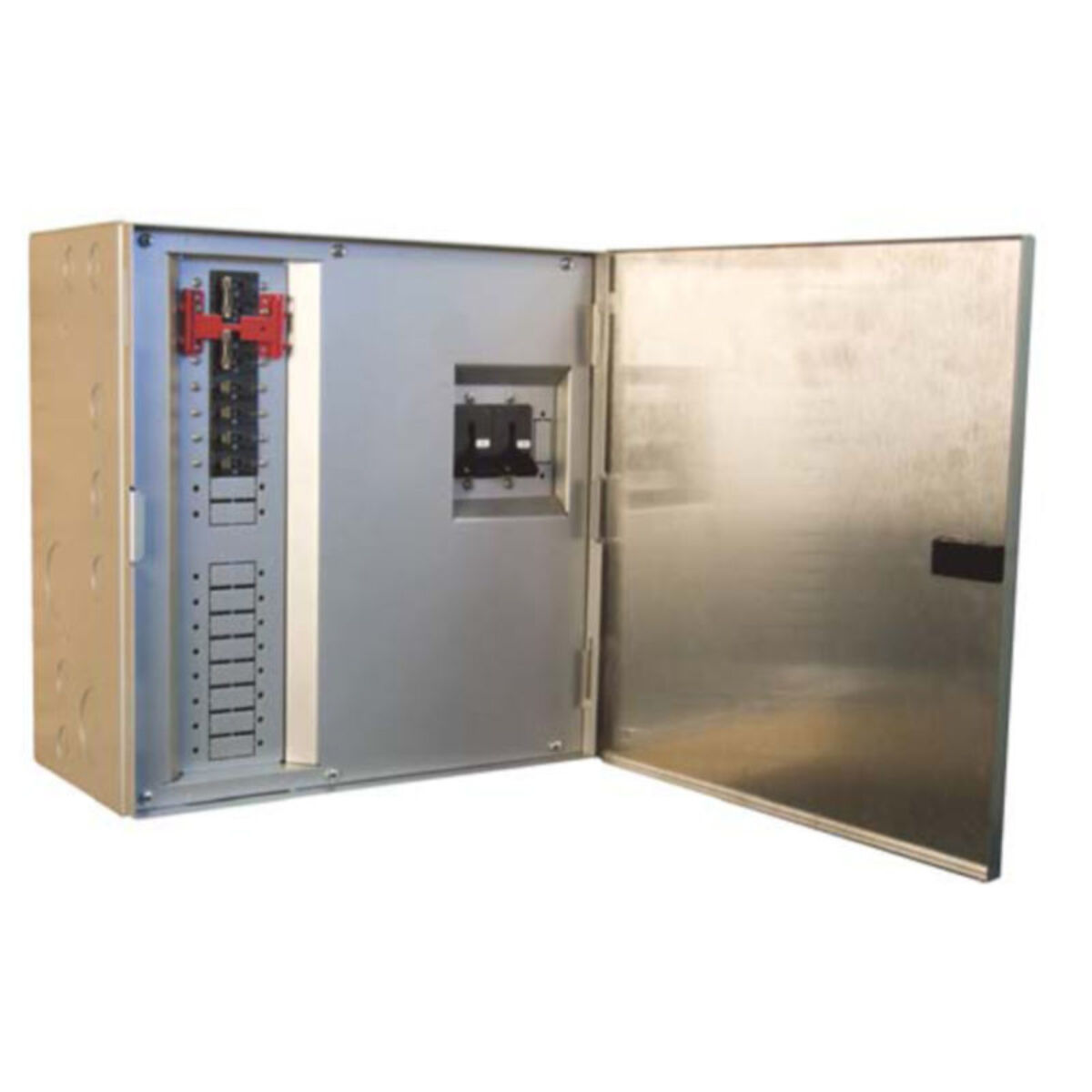

The Outback GSLC175-PV-120/240 contains two (2) 175 Amp main breakers, and two (2) PV charge controller breakers. It is recommended for use with Radian models GS8048 and GS8048A.

The Outback GSLC175-PV1-120/240 contains one (1) 175 Amp main breaker, and one (1) PV charge controller breaker. It is recommended for use with Radian model GS4048A.


  • Pre-wired or customized options for quick and easy installation
  • Dual AC inputs and DC connections
  • Maximum input voltage – 600V
  • Maximum input current – 500 Amps
  • Operating frequency – 60 Hz to DC
  • Either one or two 175 Amp breakers
  • Either two or three 500 Amp DC shunts
  • A 60 Amp, 120/240VAC byass
  • Either one or two PV disconnects
  • A FN-DC monitor
  • A Ground Fault Detector Interrupter (GFDI)
  • Greater dynamic stability
  • Fully integrated from industry leading brand
  • Environmental rating – Type 1 (indoor IP 30)
  • Warranty – 5 years
