SolaDeck 0399

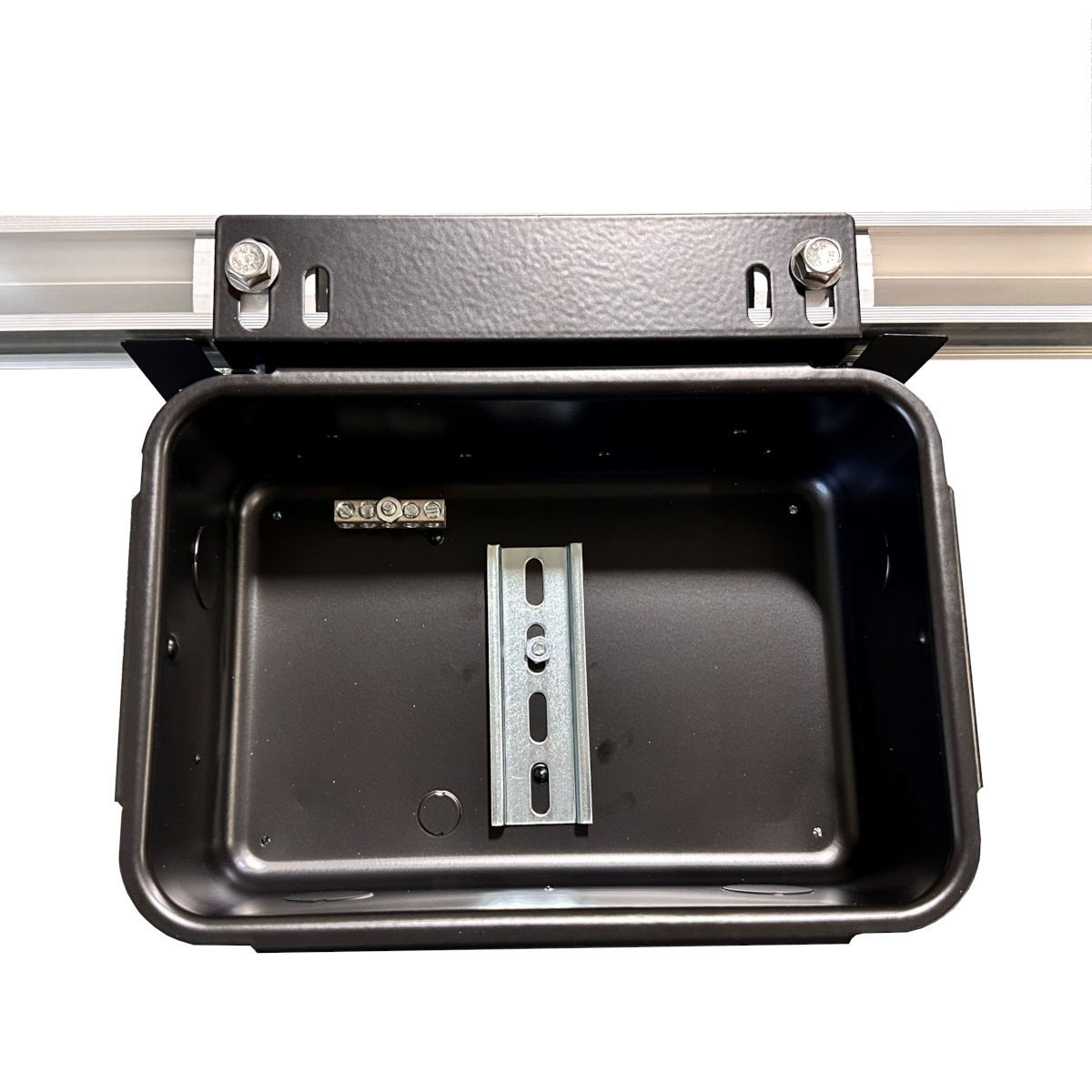

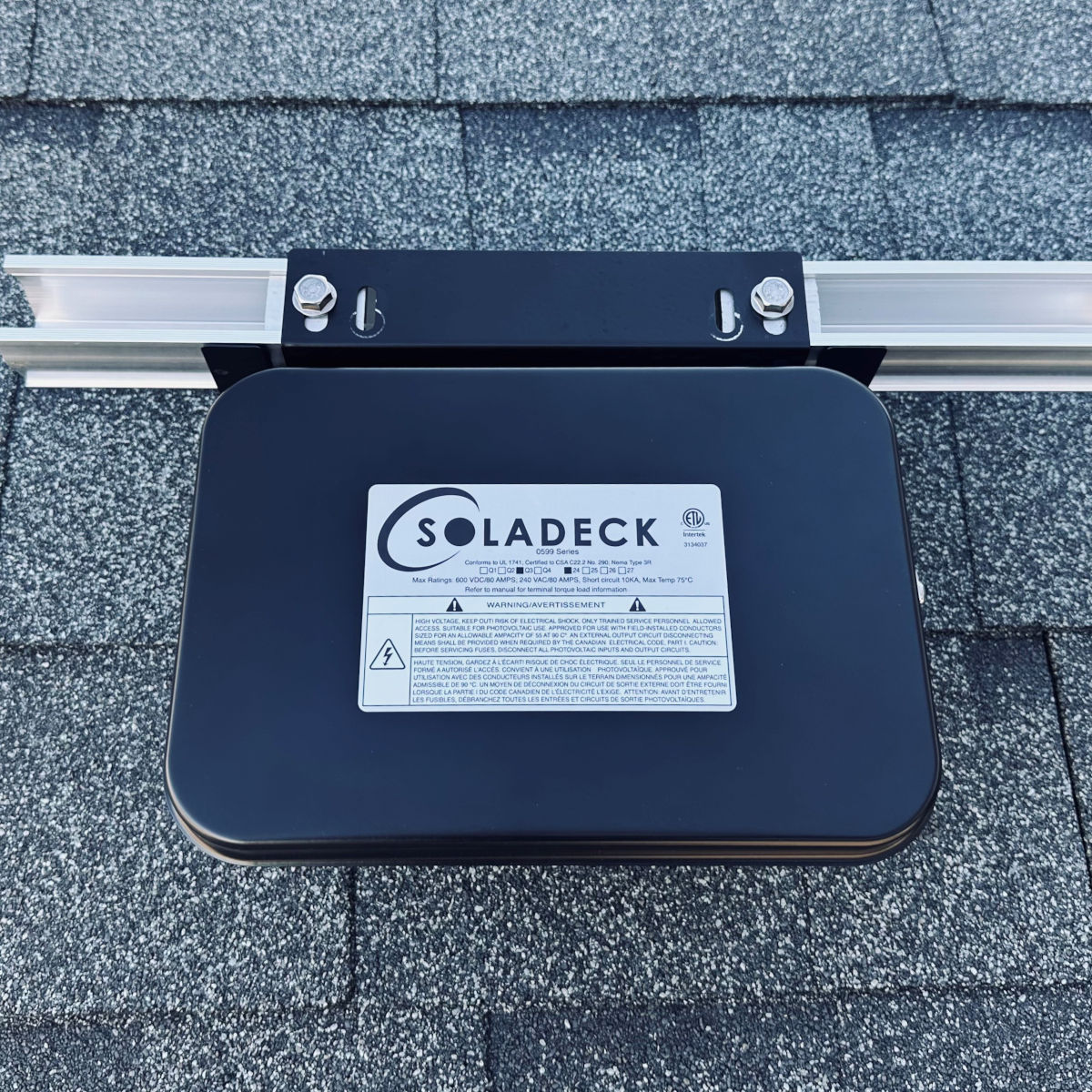

The SolaDeck 0399 is a PV-rail mounted junction box, that makes for a convenient way to converter, for example, from micro-inverter trunk cable to other wiring such as Teck90. It includes a piece of DIN-rail inside, which can be utilized to create a combiner or AD/DC disconnect.

All SolaDeck models are third party tested by ETL to the CSA C22.2 No. 290, UL50 Type 3R, 11th edition electrical equipment enclosures, and UL1741 standards. This ensures high quality and reliability of every model.

The height inside is sufficient so that breakers, such as MidNite’s MNEPV and MNEAC lines, or fuse holders, such as the Wohner 31110.000 can be installed. Just over 3″ of height is available inside, sufficient to accommodate any of these and still close properly.

Features

• Black box and cover
• 35mm DIN-rail installed
• 5 position ground block installed (6 – 14 AWG)
• Rated 1000 VDC/100 Amp or 240 VAC/100 amps
• 4 knock-outs of 3/4″, plus a 1/4″ knock-out for a ground wire
• Seamless 20 AWG galvanized steel stamped construction
• Powder coated finish (1100 hours salt-spray)
• Can be used to combine strings
• cETL listed
