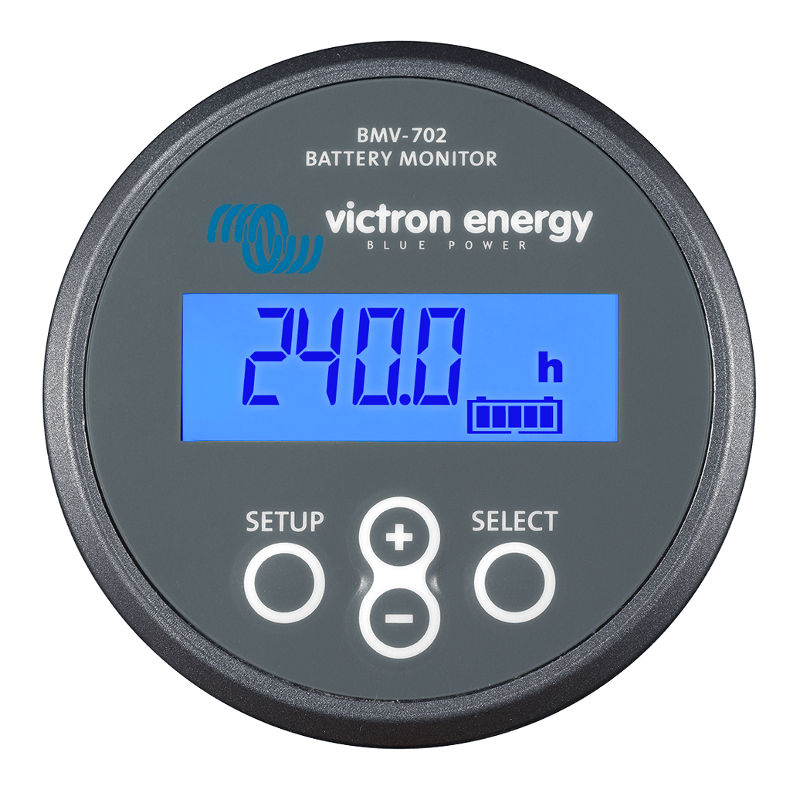

Victron BMV-702, precision battery monitor with shunt, with mid-point monitoring, 6.5 – 95 Volt, BAM010702000
The Victron BMV-702 is a high-precision battery monitor, essentially a “fuel gauge” for your batteries. The unit comes with a 500 Amp / 50 mV shunt, and can be connected to an optional battery temperature sensor (not included) to measure & display battery temperature as well. A Bluetooth Mart Dongle can be added (not included) to use a cell phone as a display.
What sets the BMV-702 apart from Victron’s other battery monitors is that it has a second input. This can be used to monitor the mid-point of a battery bank (and show an alarm when the two halves get out-of-sync) or a second battery bank.
This battery monitors works by counting Amp-hours flowing into and out of the battery through the shunt. This works for all battery types, and particularly well for lithium-ion batteries (because they are so efficient when charging). From those numbers the BMV-702 calculates the battery’s State-Of-Charge (SOC) as a percentage, 0% is an empty battery, 100% means full, and Ah’s left in the battery.
The unit can be wired together with other Victron products via the VE.Direct port, and comes with a 500A/50mV shunt.
- Available in gray and black

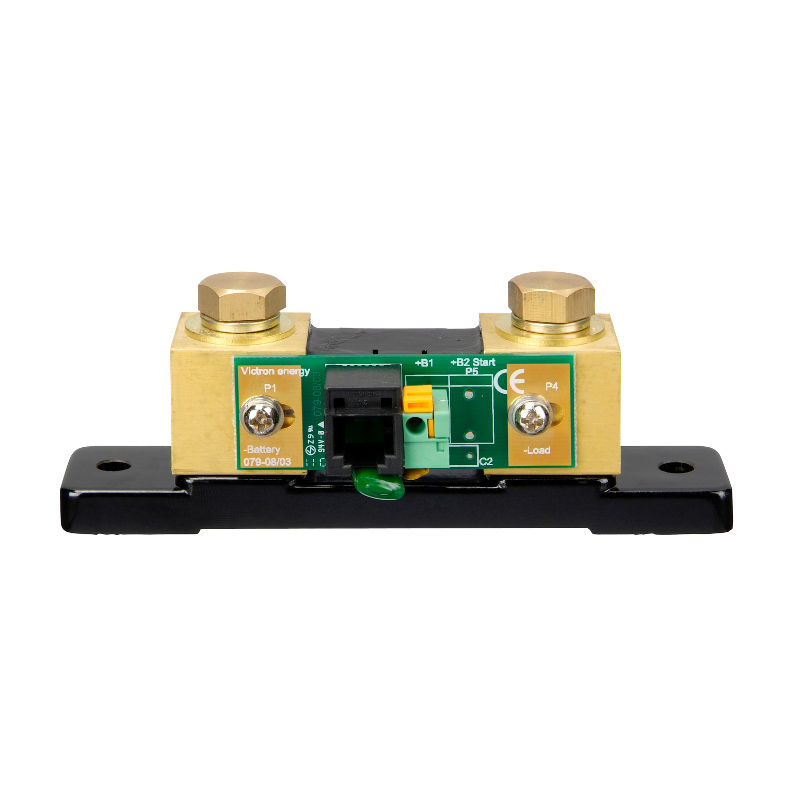

- Includes 500A/50mV shunt
- VE.Direct communications port
- Works for 6.5 – 95 Volt battery banks
- Measures second battery bank or mid-point
- Only 4 mA current draw (0.7 Ah per month!)
