DISCONTINUED: Inventory Clearout! Fronius IG Plus Advanced 3.0kW solar PV inverter, AFCI 3.0-1 UNI, 4,210,121,800

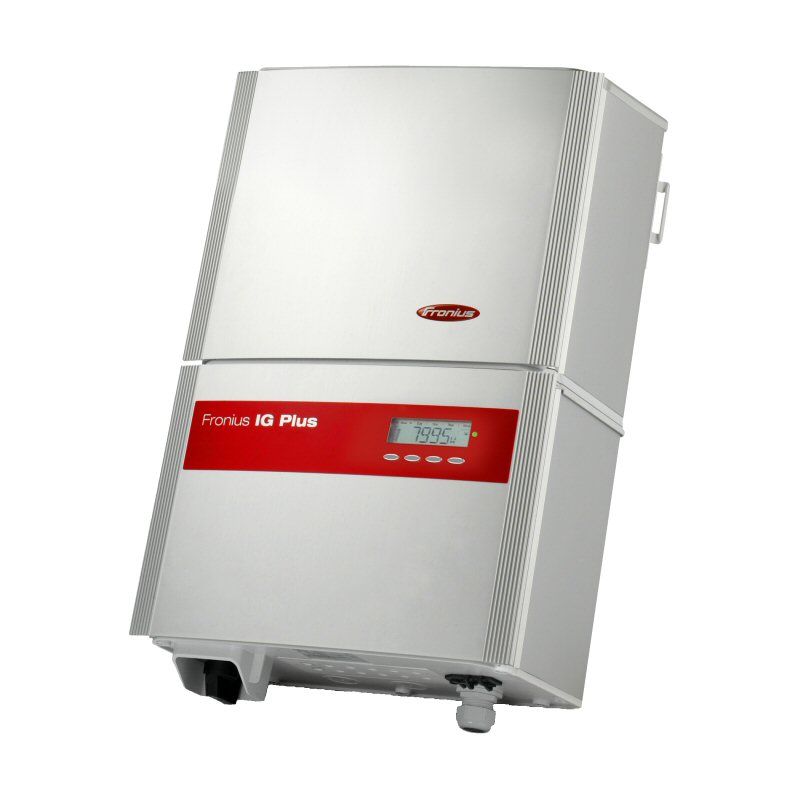

Fronius IG Plus A 3.0-1 UNI
Call for price
Out of stock
Out of stock
The Fronius IG Plus Advanced is the first complete inverter lineup of the NEC 2011 compliant AFCI protected inverters in the United States and Canada. Power classes ranging from 3 to 12 kW in both single and true 3 phase applications with integrated Fronius MIX Technology and wide voltage windows are the perfect match for your system design.
Three efficiency peaks
Greater power harvest for every system size: The unique automatic transformer switching function of the Fronius IG Plus makes enables not one, but three equal efficiency peaks. The result: Consistently high efficiency over a wide input voltage range.
In comparison: The efficiency of inverters without transformer switching declines steadily with an increasing input voltage. Devices without a transformer only have one efficiency peak.
With a 96.2 % maximum efficiency, the Fronius IG Plus series scores the highest grade among HF devices.
Get the maximum power harvest out of partial load ranges, e.g. on cloudy days, through a clever combination of multiple power stages in each inverter. The power stages in Fronius inverters divide up the work depending on operating hours and only operate as many power stages as required to efficiently process available power from the PV array.
The Module Manager™ keeps all Fronius IG inverters at the maximum power point (MPP) with fast and exact MPP tracking, ensuring that you get the most power out or each ray of sunlight. This is especially important for amorphous modules whose MPP can be more challenging to track.
Smart Ventilation Design
Disruptive ambient factors such as biological infestation, dust, moisture or coastal salt air stay outside the new Fronius IG Plus Inverters away from the circuitry. How: Cool air is drawn in through a filter screen on the back of the inverter and routed through a closed channel over the heat sink. This prevents contact between outside air and the circuit boards while cooling the inverter components ensuring the inverter operates consistently. All circuit boards are also dipped in Conformal coating to provide an added measure of protection.
- Select grounding on site; either positive or negative string grounding
- Designed for indoor and outdoor operation
- Integrated DC disconnect
- Fronius’ Power-Plug-System makes field swapping the inverter quick and easy
- Field programmable grid Voltage, 208, 240, or 277 Volt
|No. of MPPT|
|Max. input Voltage|
|MPPT Voltage range|
