Magnum Energy MPXD250-30D-R, extension box for MPHD-30D enclosure, right side version with 250A DC breaker and 30A dual pole AC breaker
The MPX Series Extension Boxes allow additional Magnum inverters to be mounted with and connected to the MP Series Systems Panels. The top of the MPX is designed to allow Magnum inverters to fit seamlessly into the top.
The MPX Series comes with the AC and DC breakers and wiring to install another Magnum Inverter. An inverter hood (not shown) is also included with each MPX extension to allow the inverter to be mounted vertically.
There are three models of the MPX Series, depending on which MP enclosure it will be installed. Each model has a left and right side version depending on which side of the MP enclosure it will be installed – this ensures correct battery cable lengths.

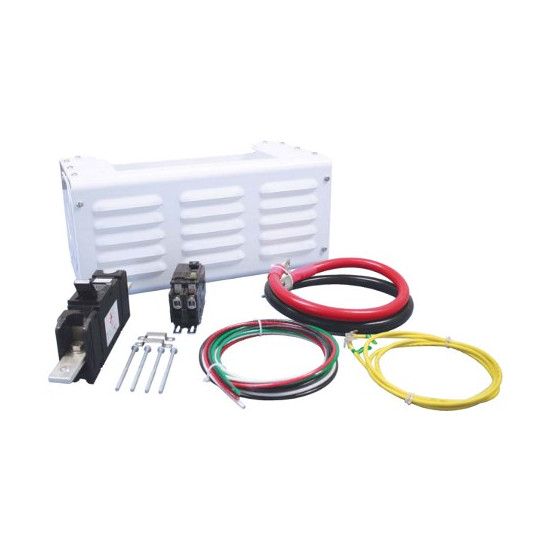

This model (MPXD-30D-R) is to be used with the MPHD-30D enclosure. It installs on the right side of the MP enclosure. It comes with one 30A AC double-pole, input circuit breaker, one 250A DC breaker, an inverter hood, and all AC and DC inverter wiring to add another inverter.
This is the right side version of the MPX Series Extension Box.
