Midnite Solar MNDC-GFP100RT-2P, 100A 150 VDC GFI breaker, ground fault protector, panel mount
MidNite Solar MNDC-GFP100RT-2P

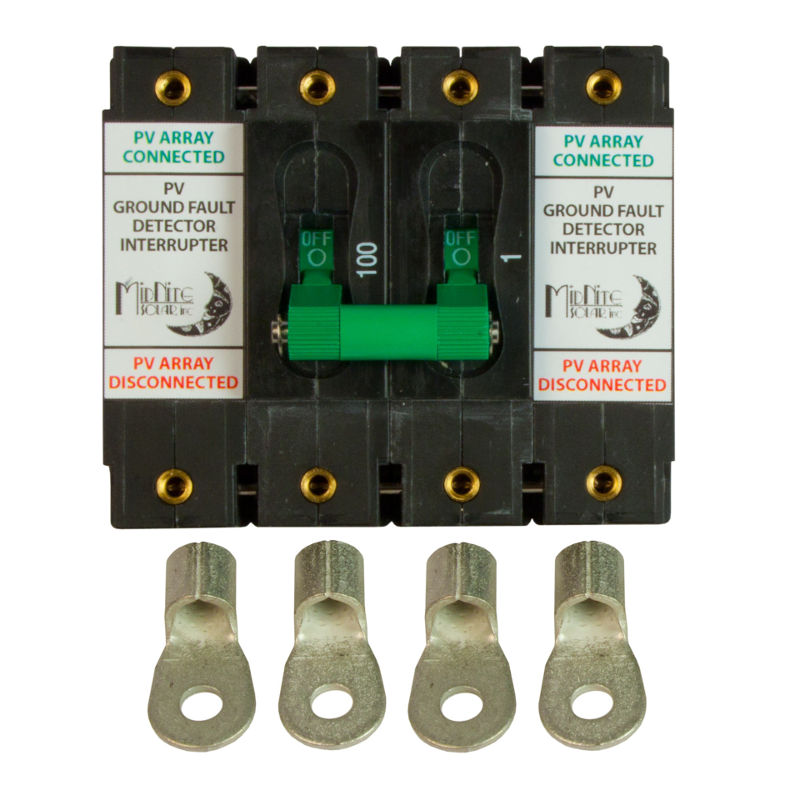

The MidNite MNDC-GFP100RT-2P is a 100 Amp, 150VDC, panel-mount dual-DC ground fault protector (2-pole). It’s designed to work with the MidNite Solar Birdhouse rapid shutdown system and the disconnecting combiner boxes. Electrical connections made on 1/4″ studs.
This breaker has several possible uses:
- 1 pv array breaking pv – and + using the 1 Amp pole as the trip source
- 1 pv array breaking pv – and + using the Classic to shunt trip the device
- 2 pv arrays breaking just the + using the 1 Amp pole as a trip source
- 2 pv arrays breaking just the + using the Classic to shunt trip the device
- 2 pole AC or DC disconnect that will interact with a rapid shutdown system using a battery disconnect module
NOTE: IF USING THE BIRDHOUSE FOR JUST SHUTTING DOWN A BATTERY BASED SYSTEM BREAKER WITHOUT A COMBINER YOU MUST USE THE MNFX-CABLE FAUX CABLE.
- Panel-mount 2-pole GFI breaker
- Environmental Rating – Type 1 (Indoor)
- Breaker torque value 30 In-Lbs (3.4NM)
- Listed for US & Canada
- Our MidNite manufacturer info page
- MidNite MNDC-GFP100RT-2P manufacturer Web site
- MidNite MNDC-GFP100RT-2P user manual (pdf)
- MidNite MNDC-GFP100RT-2P product dimensional drawing (pdf)
