Midnite Solar MNPV4HV-DISCO 3R-DLX, disconnecting 4-string combiner, 600 VDC rated, NEMA-3R, CSA-listed
MidNite Solar MNPV4HV-DISCO 3R-DLX
$1,014.90

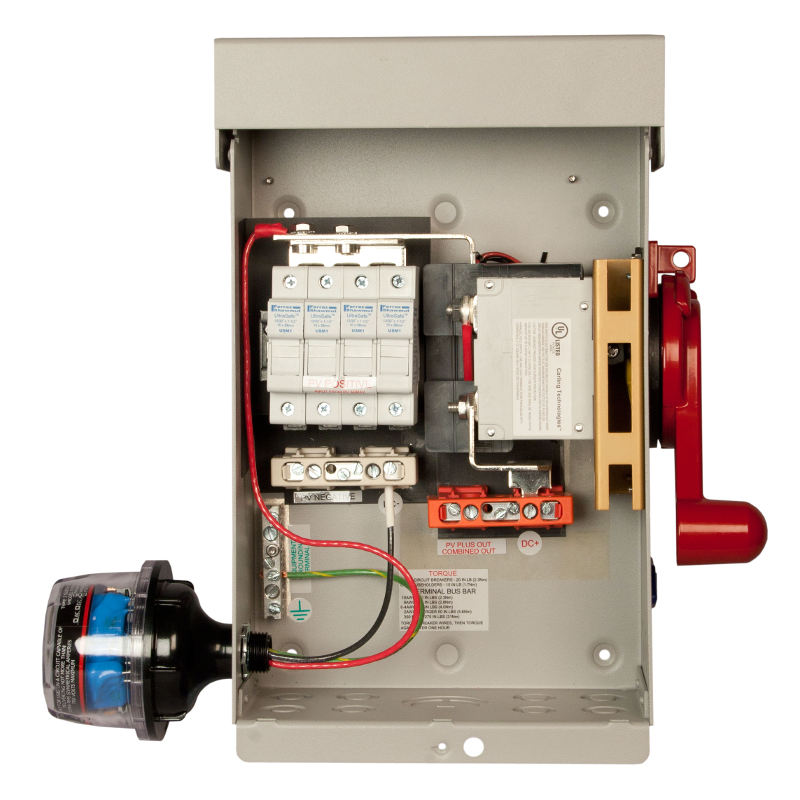

The MNPV4HV-DISCO 3R-DLX disconnecting 4-string combiner has 80 Amp bus bars, a 100 Amp load break rated switch and a third pole which acts as a feedback micro switch. It has a maximum voltage of 600V.
Features
- Type NEMA-3R aluminum enclosure (no rust, won’t turn to dust)
- Transparent deadfront & colour coded busbar guards included
- Load-break rated 80 Amp DC disconnect
- Output Circuits – 1
- Max. Output Wire Size – 1/0
- Comes with four Fuseholders (MNTS) installed
- Comes with four 15A/600V fuses installed
- Warranty – 5 years
- CSA & UL-listed for Canada and USA
Hardware
- Four 1/2 inch strain reliefs (MNSR-1000)
- Four ½” locknut
- One 10-32 X 7/8″ bolt
- One 10-32 keps nuts
- One terminal pin 18-22 AWG.
- One terminal pin 10-12 AWG.
- One ring terminal 10-12 AWG.
- One blue wrench
- One MNSPD-600 (Surge Protection Device)
- Our MidNite manufacturer info page
- MidNite Solar MNPV4HV-DISCO 3R-DLX manufacturer Web site
- MidNite Solar MNPV4HV-DISCO 3R-DLX product spec sheet (pdf)
- MidNite Solar MNPV4HV-DISCO 3R-DLX user manual (pdf)
Specifications
Weight | 10 lbs |
---|---|
Dimensions | 19 × 16 × 5 in |
Brand | |
Mnfr. model | |
Max. no. strings | |
Max. current | |
Max. Voltage | |
Enclosure | |
Warranty |
