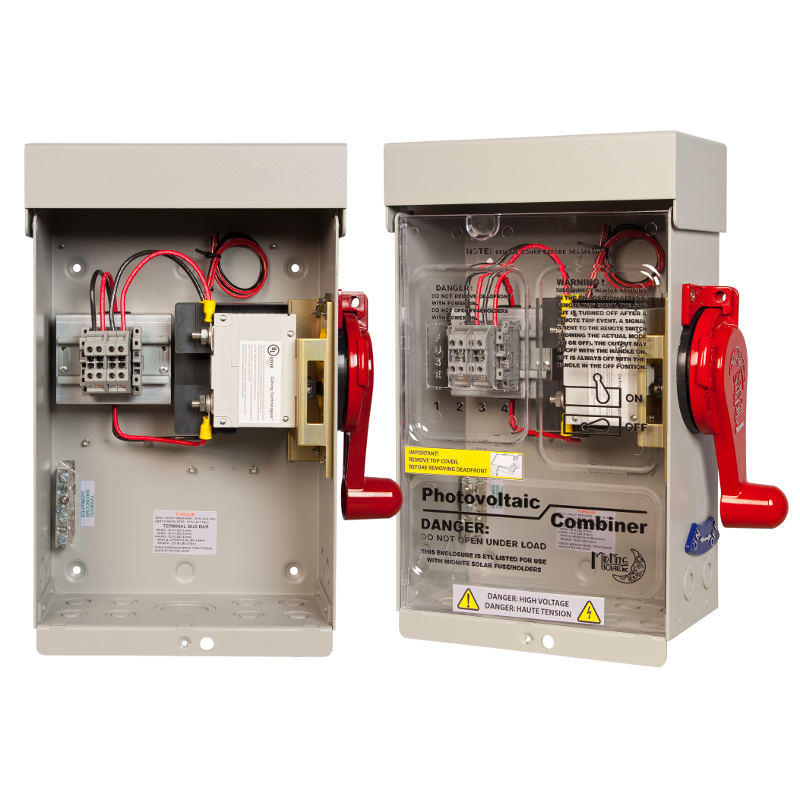

MidNite Solar MNSOB-2P

The MNSOB-2P is a disconnect switch that has a 2 channel switch that breaks both the positive and negative of a PV string to a transformer-less inverter. It has a combined rating of 600V and 20 Amps as shipped. The switch is good for 100 Amps but the wire and terminal blocks limit it to 20 Amps.

Features

• Includes a built in shunt trip with positive feedback
• Birdhouse compatible
• Optional PV connected power supply
• Transparent deadfront
• Either type 3R or type 4X aluminum enclosure (no rust, won’t turn to dust)
• Load break rated
• Customer connections are #10 wire max
• 90^o C connections
• Meets NEC 2011 and 2014 NEC 690.12
• Includes necessary installation harware (Locknuts, strain relief and wrench)
• Warranty – 5 years
• Listed by ETL for US & Canada
