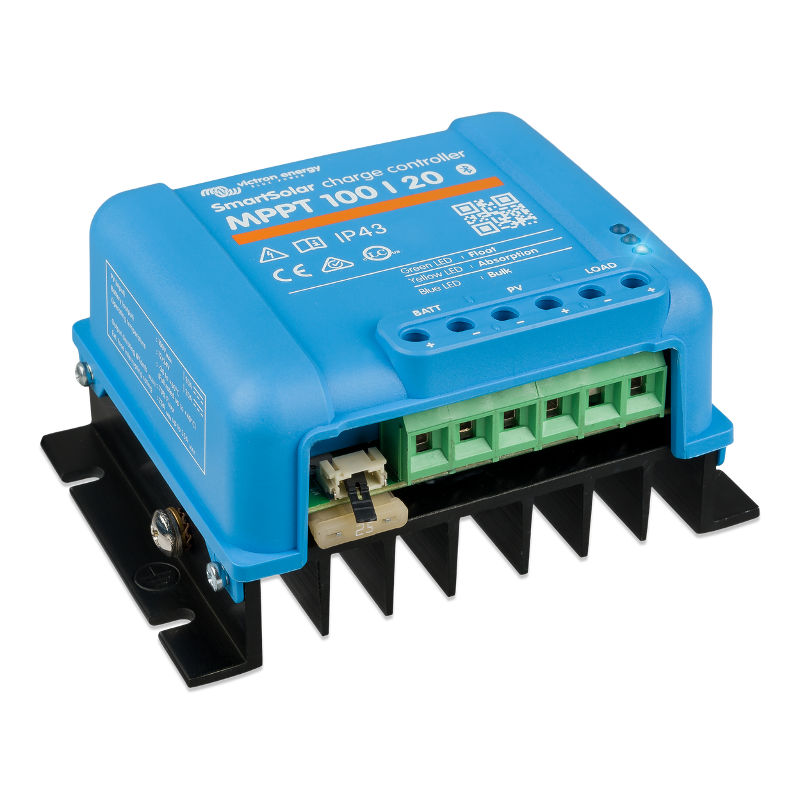

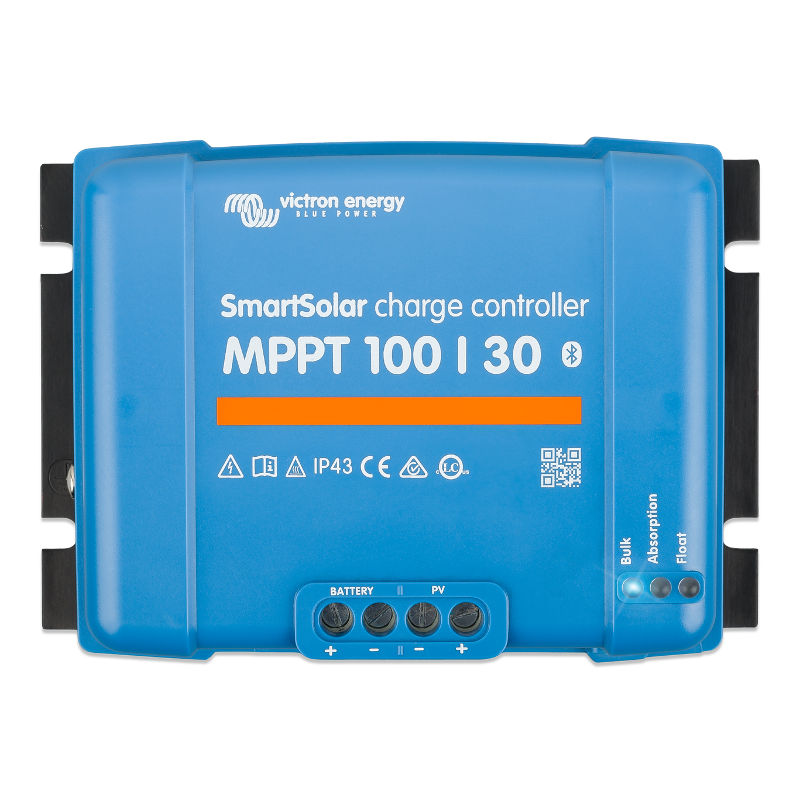

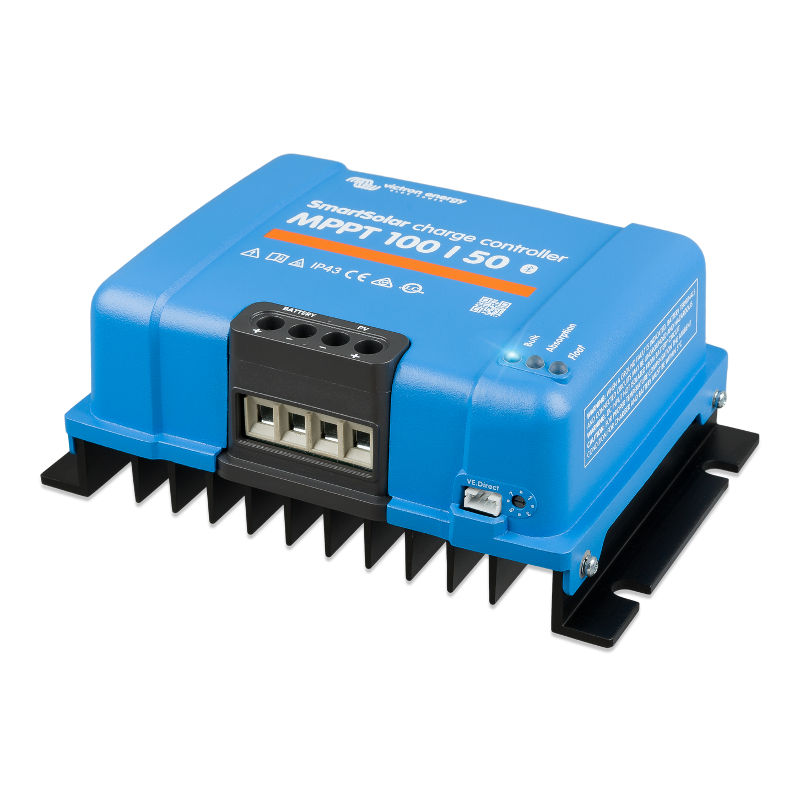

Victron SmartSolar MPPT 100V

Victron makes a wide range of Maximum Power Point Tracking solar PV charge controllers. Output currents from 10 – 100 Amp are available, with maximum input Voltages from 75 – 250 Volt. All have an ultra-fast MPPT algorithm and outstanding conversion efficiency.

Depending on the model, a SmartSolar Control Display can be plugged directly into the housing of the MPPT controller to show what the controller is doing. Alternatively, Victron’s MPPT control can be connected via a VE.Direct cable as a remote display. All SmartSolar models include Bluetooth functionality and can be monitored via the (free) VictronConnect application on a cell phone.

Multiple chargers can be used in parallel, for large systems we recommend to use the models with a VE.Can communication port

Note: The charge controller does not come with a display! The display is an optional component. Please also note that the SmartSolar 150/45 does NOT support a SmartSolar Pluggable Display, despite what the overview sheet says.

Features

• cUL listed for Canada & USA
• Voc limits from 75 – 250 Volt
• Charge currents from 10 through 100 Amp
• Build-in Bluetooth for monitoring and setup
• Natural convection cooling, no fans to break!
• VE.Direct capability, and on some models VE.Can
• Firmware updates via Bluetooth and VictronConnect software
• Battery Voltages of 12, 24, 36, and 48 Volt supported, depending on model
• All models have a build-in temperature sensor, external sensor can be connected via a Smart Battery Sense unit
