Primus 1-AR30-10, AIR 30 wind turbine, 440 Watt, internal regulator

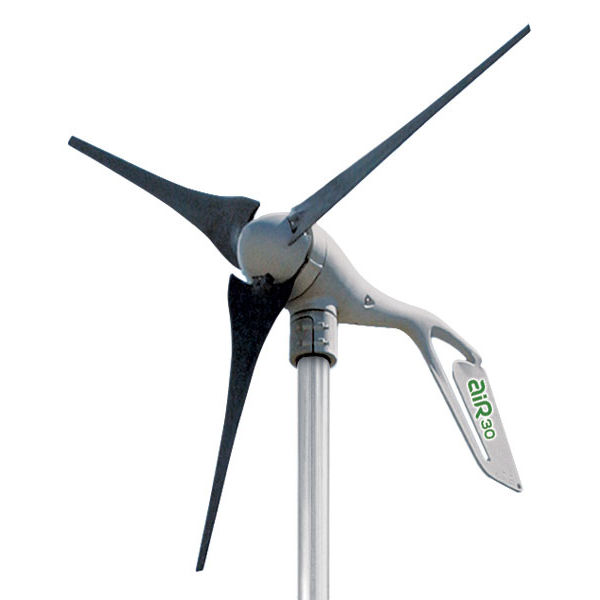

Primus AIR 30
The Primus AIR-series of small wind turbines has been around since 1995, with over 150,000 installed since! Theirs is a proven product, for a reasonable price.
The AIR 30 produces best at medium to high wind speeds and can work in a marine (salt spray) environment. For a low-wind environment the AIR 40 could be a better choice. Peak-power output is 440 Watt, and there are versions for 12/24/48 Volt battery-charging applications in coastal, desert or Arctic environments. It delivers the energy you need for communications, offshore structures, sailing or remote monitoring, to name a few. A small wind turbine can also be a great addition to an off-grid system, to provide energy during those dark (but windy) winter days. With a build-in charge controller, the AIR 30 provides energy quietly and efficiently. The AIR These are the official type codes:
Primus 1-AR30-10-12: 12 Volt AIR 30
Primus 1-AR30-10-24: 24 Volt AIR 30
Primus 1-AR30-10-48: 48 Volt AIR 30
Be sure to check out the Primus Webinars to learn more about installation, wind resources, turbine placement etc.
Please note that the Primus turbines start to protect themselves from overheating above wind speeds of around 35 mph (16 m/s). This means it shuts down for 2-1/2 minutes, then runs again for a some of time, and shuts down again, this repeats. The effect is much lower energy production for these very high (and unusual) wind speeds. This is normal, and necessary for the turbine’s survival.
- 1.17 meter (46″) rotor diameter
- 3.1 m/s (7 mph) startup wind speed

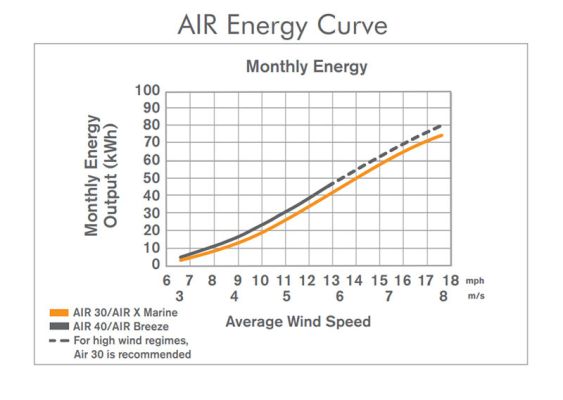

- Can produce 35 kWh/month at 5.8 m/s
- Can withstand winds up to 49.2 m/s (110 mph)
- Mounts on 1.5″ schedule 40 pipe, 48 mm (1.9″) outer diameter
- Advanced microprocessor technology for superior performance
- High wind protection without mechanical braking
- Lightweight design is simple and easy-to-install
- Permanent mold cast aluminum body
- High-quality, field tested components
- Warranty 5 years
Turbine Selection Matrix
|Low to Moderate Wind Speeds||High Wind Speeds||Very High Wind Speeds|
|under 5.5 m/s (12 mph) average December wind speeds||5.5 – 7 m/s (12 – 15 mph) average December wind speeds||Over 7 m/s (15 mph) average December wind speeds|
|Coastal Use||AIR Breeze||AIR X Marine, AIR Silent X||AIR X Marine, AIR Silent X, with TriStar 45 and TL-100 diversion load|
|Inland Use||AIR 40||AIR 30||AIR 30 with TriStar 45 and TL-100 diversion load|
The marine-type turbines (AIR Breeze, AIR X Marine, and AIR Silent X) can of course also be used at inland sites. They are just a more corrosion-resistant version of the inland wind turbines.

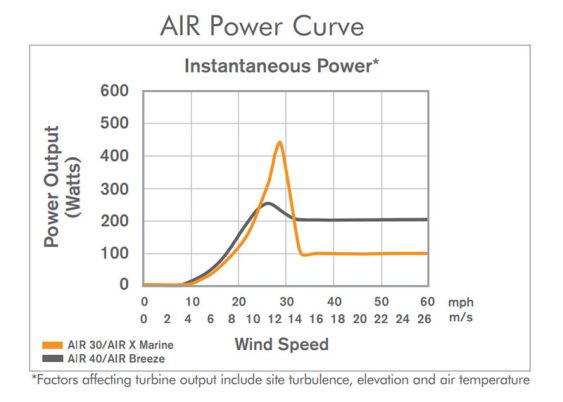

|Rated output power||
440 Watt @ 12.5 m/s (28 mph)
|Startup wind speed||
3.1 m/s (6.9 mph)
1.17 m (46")
|Rotor swept area||
1.07 m^2 (11.5 ft^2 )
