MidNite Solar MNPV12-250

$431.14

MidNite Solar MNPV12-250, 6-string DC combiner for six 300 VDC breakers (can be split 3 + 3), NEMA-3R

Find this useful? Share it with your friends!
SKU: MID-108-167 Categories: , Tags: ,

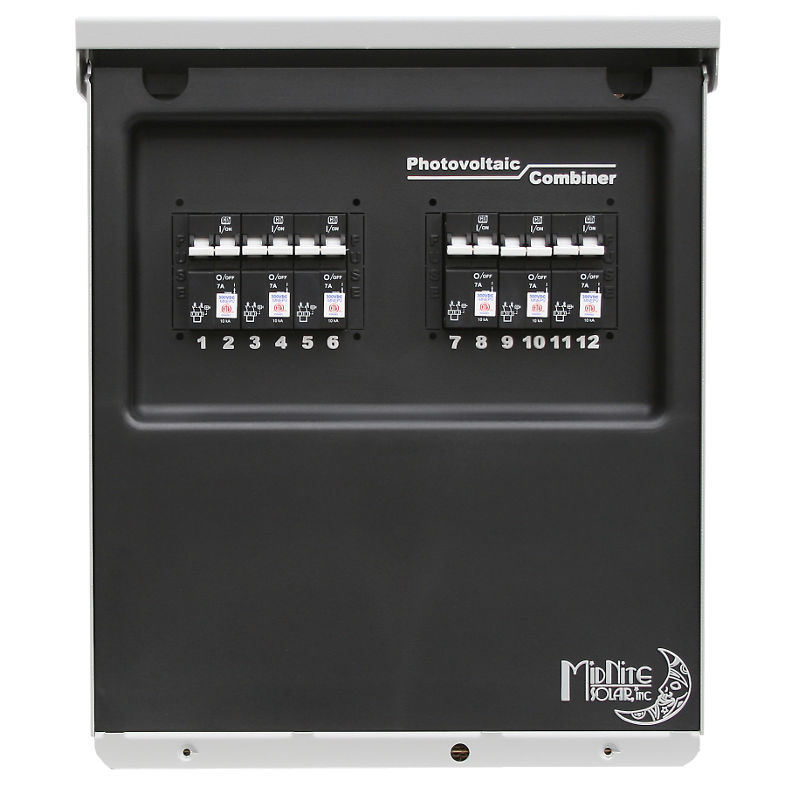

The MNPV12-250 is a 6-string PV combiner box for use with 200 and 250 VDC charge controllers. The combiner has room for six 300 Volt DC rated breakers, and can be split 3 + 3 for use with two charge controllers. It has a gray aluminum NEMA type 3R rainproof enclosure with insulating dead front.

The combiner comes without breakers. The 15 Amp 300 Volt DC rated MNEPV15-300 breakers are normally used with this combiner.

Features

  • UL/CSA listed for North America
  • All aluminum powder coated housing that won’t rust, rain-proof NEMA-3R rated
  • Flip up cover that can stay in the open position during installation
  • PV Negative bus bar with 15 useable openings
  • Chassis ground bus bar with 15 useable openings
  • Standard din rail to mount up to six 300V breakers
  • 168 Amp tin plated copper bus bar to combine breaker outputs, can be split in two
  • Dead front cover snaps into place after wiring is complete for safety
  • Knockouts for PV in and PV out on bottom and sides
  • 5-year warranty
Find this useful? Share it with your friends!
Find this useful? Share it with your friends!

Specifications

Weight 8 lbs
Dimensions 16 × 14 × 5 in
Brand

Mnfr. model

Max. no. strings

Max. current

Max. Voltage

Enclosure

Warranty
