>>>QuickCable MAX Copper Lug

QuickCable MAX Copper Lug

$1.56$3.76

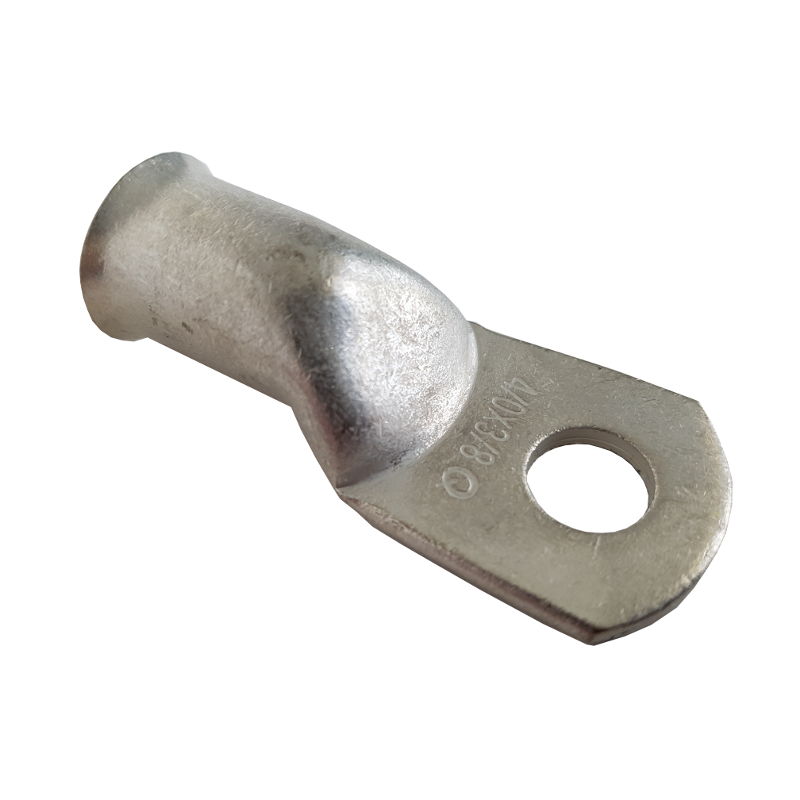

QuickCable MAX Lug, tin-plated copper lug, 4 AWG through 4/0 AWG, 3/8″ hole, cUL listed

SKU: XXX-XXX-195 Categories: , Tags: , , , , , ,

These are heavy-duty tin-plated solid copper lugs for 4 AWG through 4/0 AWG wire from QuickCable’s MAX series. Stud hole is 3/8″ on all sizes. These lugs are ideal for battery interconnects and inverter cables.

Lug Dimensions

Lug Dimensions

L (inch)W (inch)
5952F (4 AWG)1.53″0.57″
5953F (2 AWG)1.62″0.65″
5954F (1 AWG)1.72″0.68″
5955F (1/0 AWG)1.85″0.73″
5956F (2/0 AWG)2.07″0.83″
5958F (4/0 AWG)2.38″1.02″



Features

  • Tin plating ensures maximum conductivity and corrosion resistance
  • Can be installed with regular crimp tools, or soldered
  • Seamless one piece pure electrolytic copper construction
  • Generous entrance chamfer for easy wire insertion
  • UL/CSA listed

Specifications

Brand

Mnfr. model

, , , , ,

Gauge

, , , , ,
